Description
125 Mbps, SFP, LC, 1310 nm, 60 km
- Provides duplex LC connector
- IEEE 802.3z Gigabit Ethernet compliant
- 3.3V Single power supply
- Hot-swappable
- RoHS compliant and Lead Free
- Low EMI with metal housing
- Industrial operating temperature range -40 °C to 85 °C
Description

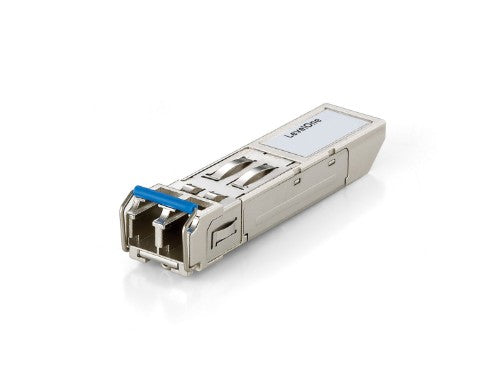

LevelOne Infinity Small Form Factor Pluggable (SFP) transceiver is compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It complies with Gigabit Ethernet as specified in IEEE Std 802.3, as well as the RoHS compliant and lead-free per Directive 2002/95/EC. This Hot-swappable SFP transceiver offers the latest industry standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.- Provides duplex LC connector
- IEEE 802.3z Gigabit Ethernet compliant
- 3.3V Single power supply
- Hot-swappable
- RoHS compliant and Lead Free
- Low EMI with metal housing
- Industrial operating temperature range -40 °C to 85 °C
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 60000 m |
| Wavelength | 1310 nm |
| Fiber ports quantity | 1 |
| Tx power (min) | -5 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 125 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 125 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 8.4 mm |
| Height | 56.6 mm |
| Weight | 120 g |
| Package depth | 50 mm |
| Package width | 15.2 mm |
| Package height | 230 mm |
| Package weight | 165 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 15.2 mm |
| Package height | 230 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 60000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -5 dBmW |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package depth | 50 mm |
| Package width | 15.2 mm |
| Package height | 230 mm |
| Package weight | 165 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
