Description

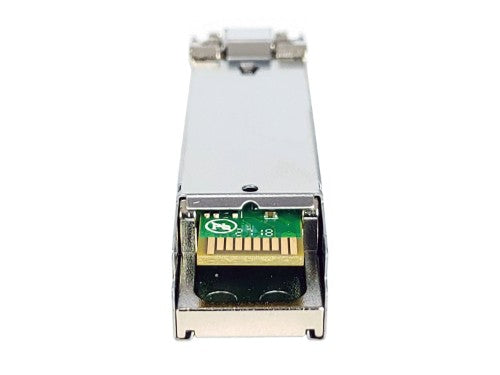

1.25Gbps, Single-mode, BIDI, SFP, 60km, TX 1550nm / RX 1310nm, -40°C to 85°C

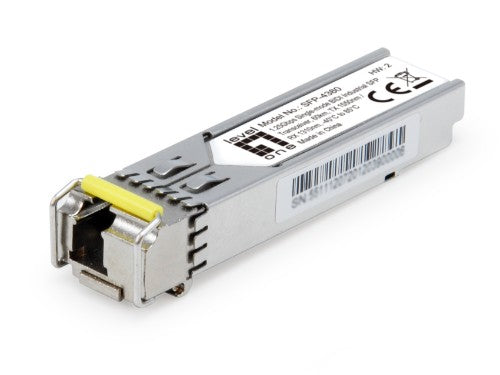

The SFP-4380 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-4370 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.
This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
Key Features
- 1.25Gbps Bi-directional single fiber link
- Supports Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring
- Hot-swappable providing non-stop service

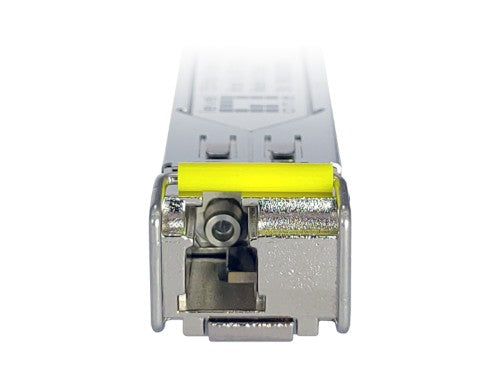

- Provides simplex LC connector
- 40°C to 85°C operating temperature range
- RoHS compliant and Lead Free
- Compatible with SFP Multi-Sourcing Agreement (MSA) standards
Description
The LevelOne SFP-4380 is a high performance, costeffective SFP transceiver. It provides up to 1,25 Gbps bi-directional data transfer rate at distances up to 60km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.The SFP-4380 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-4370 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.
This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 60000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -2 dBmW |
| Tx power (max) | 3 dBmW |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Country of origin | China |
| Product colour | Silver |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Country of origin | China |
| Certification | CE |
| Safety | FDA 21CFR 1040.10, 1040.11 EN60950, EN (IEC)60825-1,2 |
| Power | |
| Maximum voltage | 3.47 V |
| Power consumption (typical) | 1 W |
| Certificates | |
| Certification | CE |
| Safety | FDA 21CFR 1040.10, 1040.11 EN60950, EN (IEC)60825-1,2 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.5 mm |
| Height | 11.8 mm |
| Weight | 19 g |
| Package depth | 106 mm |
| Package width | 65 mm |
| Package height | 20 mm |
| Package weight | 39.5 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| User guide | Yes |
| Technical details | |
| Package width | 65 mm |
| Package height | 20 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 60000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -2 dBmW |
| Tx power (max) | 3 dBmW |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 166.9 cm |
| Compliance certificates | RoHS |
| Packaging data | |
| Package type | Box |
| Package depth | 106 mm |
| Package width | 65 mm |
| Package height | 20 mm |
| Package weight | 39.5 g |
| User guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 268 mm |
| Master (outer) case gross weight | 6.8 kg |
| Products per master (outer) case | 150 pc(s) |
| Products per pallet | 35 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 166.9 cm |
