Description

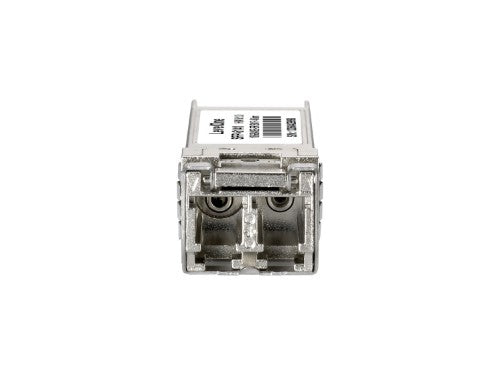

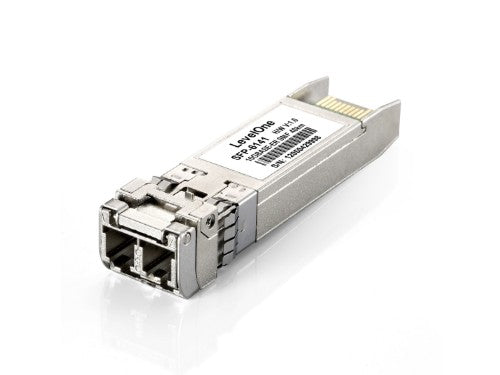

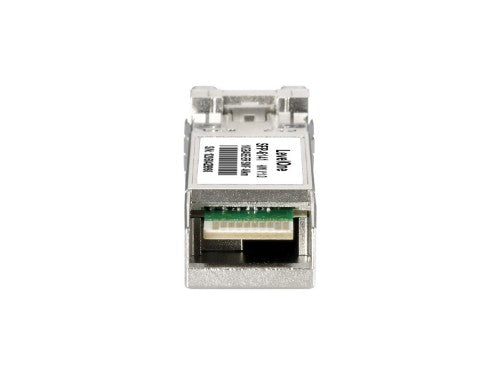

10 Gbps, LC, SFP+, 40 km, 1550 nm, 20 g
- High-quality 10Gbase short range SFP-Plus transceiver
- Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices
- Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring
- Hot-swappable providing non-stop service
- Provides duplex LC connector
- Operating temperature: 0°C ~ 70°C
Description
LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF) or 300m (MMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-Plus transceivers adopt the most advanced technology to minimize the power consumption in ultra-high speed.- High-quality 10Gbase short range SFP-Plus transceiver
- Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices
- Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring
- Hot-swappable providing non-stop service
- Provides duplex LC connector
- Operating temperature: 0°C ~ 70°C
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Link budget | 11.1 dB |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -4.7 dBmW |
| Tx power (max) | 4 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Country of origin | Taiwan |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-swap | Yes |
| Country of origin | Taiwan |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Power | |
| Maximum voltage | 3.6 V |
| Maximum current | 0.5 A |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 12 mm |
| Height | 13.7 mm |
| Weight | 20 g |
| Package depth | 20 mm |
| Package width | 106 mm |
| Package height | 65 mm |
| Package weight | 35 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 106 mm |
| Package height | 65 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -4.7 dBmW |
| Tx power (max) | 4 dBmW |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package depth | 20 mm |
| Package width | 106 mm |
| Package height | 65 mm |
| Package weight | 35 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85369010 |
