Description
155 Mbps, LC, SFP, 20 m, 1310 nm/1550 nm

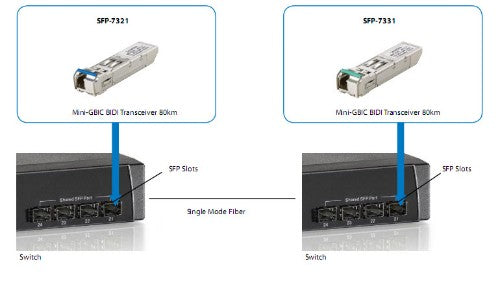

The SFP-7321 transmits using a wavelength of 1310nm and receives using a wavelength of 1550nm. When coupled with the LevelOne SFP-7331 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.
- 1310nm FP LD
- Data Rate: 125~155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Compliant with SFF-8472 Digital Diagnostic Monitoring Interface
- Single LC Connector
- Compliance with specifications for IEEE802.3ah 100BASE-BX10-U
- Compliance with FDDI PMD Standard
- Compliance with ATM Standard
Description

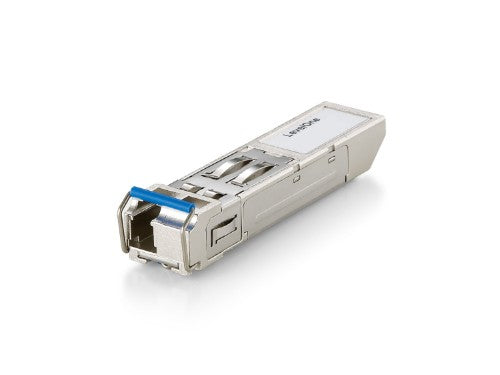

The LevelOne SFP-7321 is a high performance, cost-effective SFP transceiver. It provides up to 155Mbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.The SFP-7321 transmits using a wavelength of 1310nm and receives using a wavelength of 1550nm. When coupled with the LevelOne SFP-7331 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.
- 1310nm FP LD
- Data Rate: 125~155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Compliant with SFF-8472 Digital Diagnostic Monitoring Interface
- Single LC Connector
- Compliance with specifications for IEEE802.3ah 100BASE-BX10-U
- Compliance with FDDI PMD Standard
- Compliance with ATM Standard
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ah |
| Maximum transfer distance | 20 m |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -14 dBmW |
| Tx power (max) | -8 dBmW |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Power | |
| Maximum voltage | 6 V |
| Maximum current | 0.3 A |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ah |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.5 mm |
| Height | 8.95 mm |
| Weight | 20 g |
| Package depth | 365 mm |
| Package width | 320 mm |
| Package height | 275 mm |
| Package weight | 7.6 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 320 mm |
| Package height | 275 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 20 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -14 dBmW |
| Tx power (max) | -8 dBmW |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package depth | 365 mm |
| Package width | 320 mm |
| Package height | 275 mm |
| Package weight | 7.6 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
