Description
2 x SC MMF, 200Mbps, PCI 32bit v2.1 33/66MHz, IEEE 802.3u/x, IEEE 802.1p/Q
Key Features
- Supports most network operating systems (NOS)
- Built-in Wake-on-LAN feature to startup computers remotely
- High-speed gigabit network card with PCI Express v1.1 compliant
- 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
Description

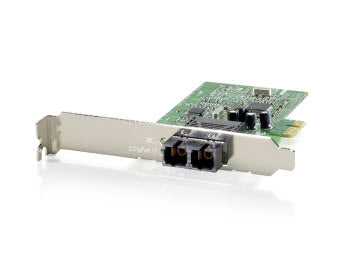

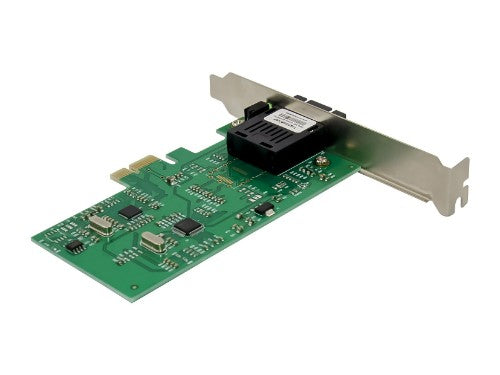

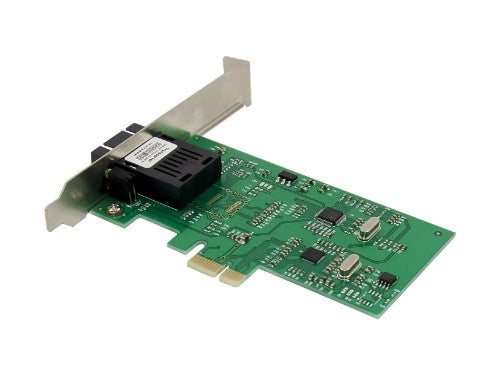

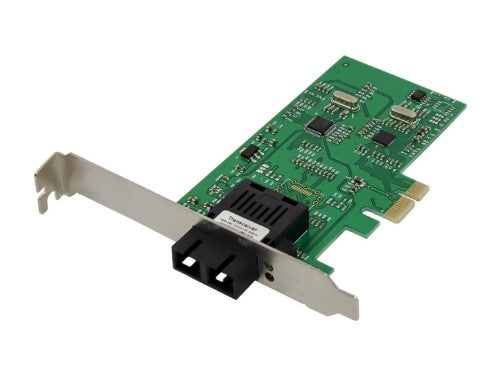

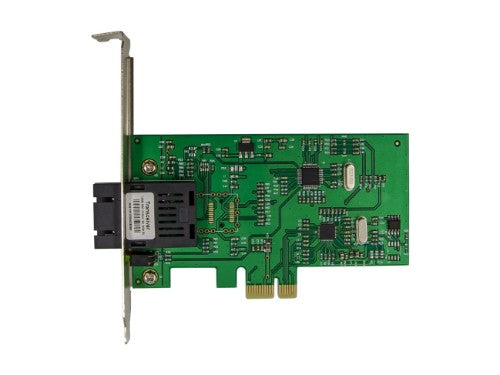

The LevelOne FNC-0115 network card with PCI Express offers a broad feature set with high speed performance and IP header verification, all at a great price. The card has a Wake-on-LAN feature offering remote start-up and shutdown, offers full-duplex switching at up to 2km and clearly visible diagnostic LEDs showing link, activity, collision and FDX. IEEE 802.1Q VLAN allows network segmentation and enhances performance and security.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 200 Mbit/s |
| Technical details | |
| Product colour | Aluminium |
| Wake-on-LAN ready | Yes |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | RoHS |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Maximum operating distance | 20000 m |
| Full duplex | Yes |
| Fiber ethernet cabling technology | 100BASE-FX |
| Maximum data transfer rate | 200 Mbit/s |
| Design | |
| Product colour | Aluminium |
| Certification | FCC Class B, CE |
| Internal | Yes |
| LED indicators | Activity, Link |
| Component for | PC/Laptop |
| Software | |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Activity, Link |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 68 mm |
| Height | 17 mm |
| Weight | 58 g |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Packaging data | |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Performance | |
| Wake-on-LAN ready | Yes |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Certificates | |
| Certification | FCC Class B, CE |
| Other features | |
| Manual | Yes |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
