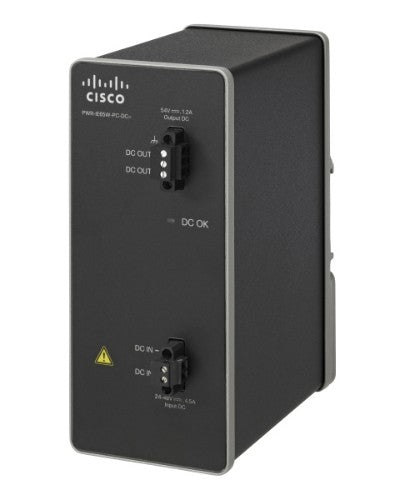

DC, 54VDC power module to support 65 watts for PoE/PoE+ modules, 18-60 VDC input, 54VDC/1.2 Amp output, 0.54 kg
Description
This DC-input power supply is designed to power the Cisco IEM-3000-4PC and IEM-3000-4PC-4TC Power over Ethernet (PoE) expansion modules with the following caveats.
- The 65 W DC-input power supply can support only one PoE expansion module.
- Each power supply is capable of supporting a maximum of four PoE ports or two PoE+ ports on the PoE expansion module.
Specifications
| Features |
|---|
| Input current |
4.5 A |
| Output power |
65 W |
| Output current |
1.2 A |
| Power supply type |
Indoor |
| Purpose |
Network switch |
| Product colour |
Black |
| Power |
|---|
| Input current |
4.5 A |
| Output power |
65 W |
| Output current |
1.2 A |
| DC output voltage |
+54V |
| Performance |
|---|
| Power supply type |
Indoor |
| Purpose |
Network switch |
| Design |
|---|
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Weight |
540 g |
| Width |
66 mm |
| Depth |
116.8 mm |
| Height |
150 mm |
| Technical details |
|---|
| Maximum output power |
75 W |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
| Other features |
|---|
| Hold time |
20 ms |
