Description

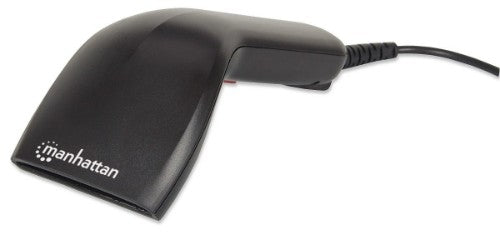

Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty
Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its USB cable interface integrates with most PCs without an external power supply. With a scan rate of 100 scans per second and an accurate read range of up to 60 mm (2.4 in.), this model offers a practical daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
Key Features
- Helps speed data entry, reduce errors and improve efficiency; ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if directly entered from keyboard
- Wide scan field provides quick, accurate reads with up to 100 scans per second
- Detects many popular symbologies including UPC, EAN, 1D barcodes, ASCII, GS1 DataBar Family and more
- Switchable interface integrates with most PCs
- Easy to install and use without software or special training
- Three-Year Warranty
Description
Improve speed, accuracy and productivity._x000D_Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its USB cable interface integrates with most PCs without an external power supply. With a scan rate of 100 scans per second and an accurate read range of up to 60 mm (2.4 in.), this model offers a practical daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
Specifications
| Scanning | |
|---|---|
| Scanner resolution | 0.127 mm |
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Working distance | 6 cm |
| Wavelength | 632 nm |
| Sensor type | CCD |
| Scanner type | 1D |
| Read rate (max) | 100 reads/s |
| Maximum scan width | 6 cm |
| Light levels (direct sunlight) | 0 - 5000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 1.524 m |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Certification | • FCC • CE • RoHS |
| Light levels (direct sunlight) | 0 - 5000 lx |
| Design | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Certification | • FCC • CE • RoHS |
| Power | |
| Power consumption | 80 mA |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 180 mm |
| Height | 63.5 mm |
| Weight | 180 g |
| Technical details | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Certification | • FCC • CE • RoHS |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Light levels (direct sunlight) | 0 - 5000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
