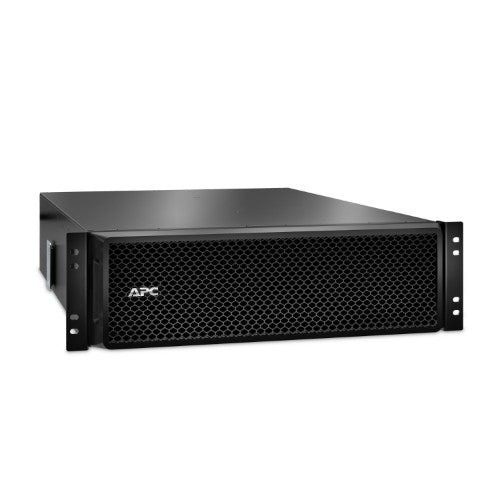

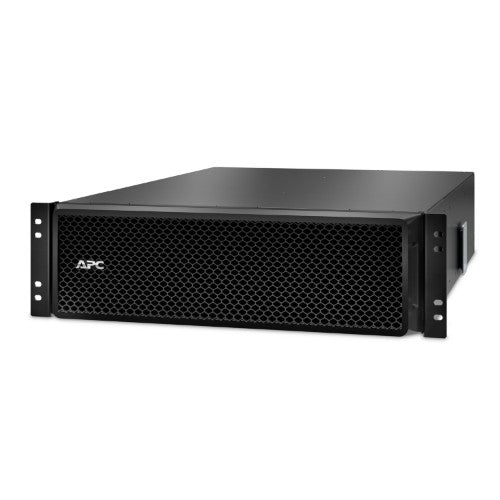

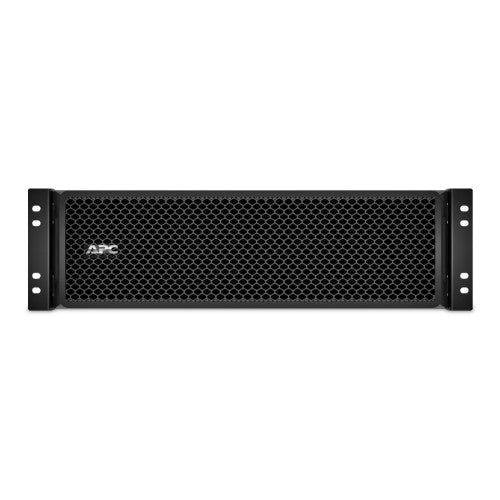

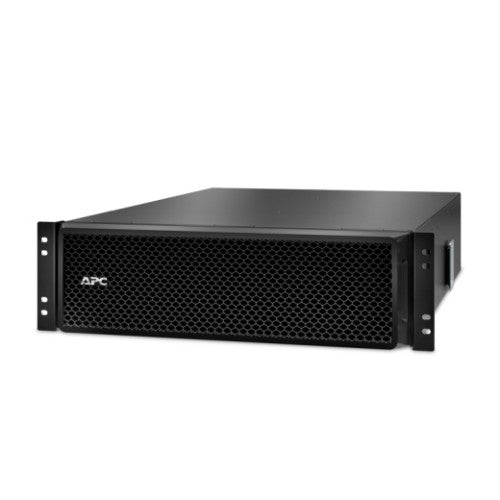

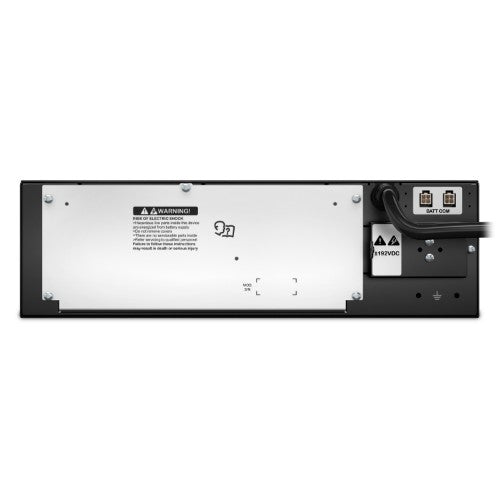

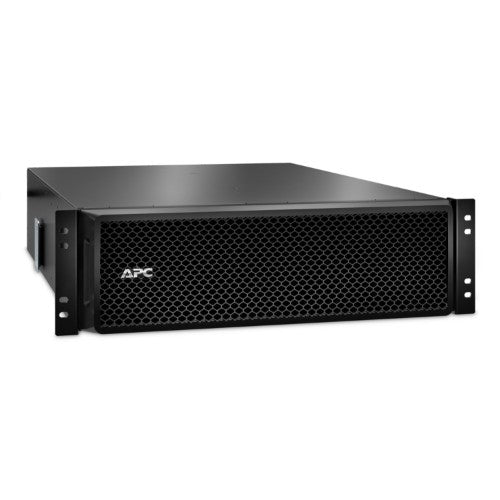

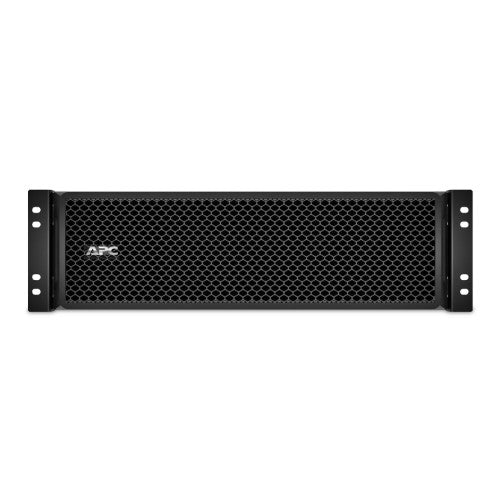

Smart-UPS SRT 192V 8 and 10kVA RM Battery Pack
Key Features
- Extended-run battery systems provide flexible runtime to critical Smart-UPS applications
- Includes: Installation guide, Warranty card
Description
This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 683mm (depth) x 432mm (height) x 130mm (width) and weighs 91.0kg. Ideal for Smart-UPS on-line mission critical applications. It conforms to OSHPD.
Specifications
| Features |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
1920 VAh |
| Battery voltage |
192 V |
| Certification |
OSHPD
REACH |
| Battery life |
5 year(s) |
| Number of batteries included |
1 pc(s) |
| Product colour |
Black |
| Technical details |
|---|
| Harmonized System (HS) code |
85044095 |
| Total carbon footprint (kg of CO2e) |
483.08 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
91 kg |
| Width |
432 mm |
| Height |
130 mm |
| Depth |
682 mm |
| Packaging data |
|---|
| Package width |
600 mm |
| Package height |
420 mm |
| Package depth |
1000 mm |
| Package weight |
105.5 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
