2200 VA/1200 W, 220 - 240 VAC, 50-60 Hz, USB, 6 x IEC, RJ-11/RJ-45, 10.2 kg
Description

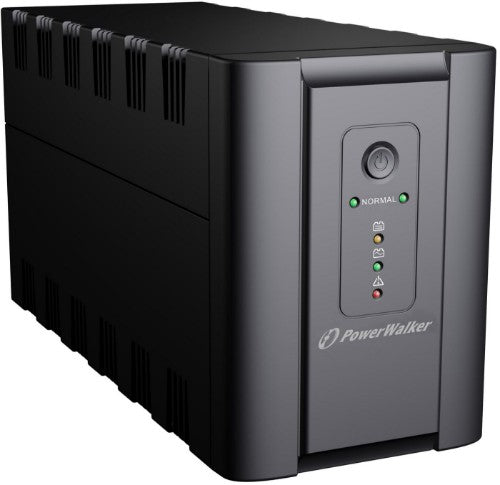

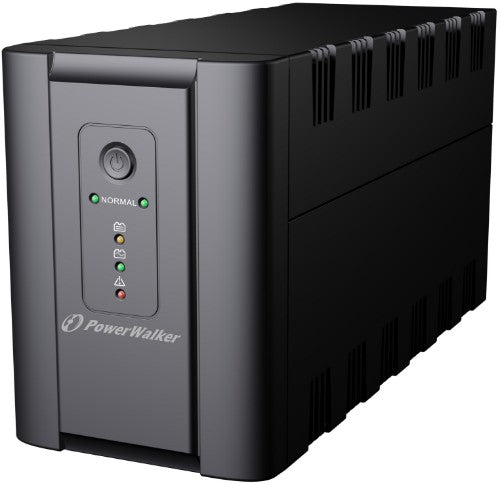

PowerWalker VI 2200 IEC is a Line - Interactive UPS which provides high performance and reliable and cost - effective backup power protection . The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ11/RJ45 surge protection, and green power fu nction for energy saving. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or SMB ( small medium business) application
Specifications
| Power |
|---|
| Output voltage regulation |
10% |
| Output power |
1200 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output power capacity |
2.2 kVA |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| LED indicators |
Yes |
| Noise level |
45 dB |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output voltage regulation |
10% |
| Output power |
1200 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Noise level |
45 dB |
| Output power capacity |
2.2 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
C13 coupler, Type E, Type F |
| USB 2.0 ports quantity |
1 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Number of batteries supported |
2 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery recharge time |
6 h |
| Design |
|---|
| Form factor |
Mini Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Package width |
230 mm |
| Package depth |
452 mm |
| Package height |
292 mm |
| Weight |
10.2 kg |
| Width |
139 mm |
| Height |
195 mm |
| Depth |
365 mm |
| Packaging data |
|---|
| Package width |
230 mm |
| Package depth |
452 mm |
| Package height |
292 mm |
| Bundled software |
WinPower |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Packaging content |
|---|
| Bundled software |
WinPower |
