8 x DIN49440, 250 V, 50/60 Hz, 16 A, 3500 W, 760 g
Key Features
- Rating: 220-240V 50/60Hz
- 1U Horizontal installation
- Current rating: 16A
- Maximum power: 3500W
- Power ON/OFF switch
- 8 x DIN49440 (German)
- Cable Length: 1.8m
- Material: Plastic Shell
Description

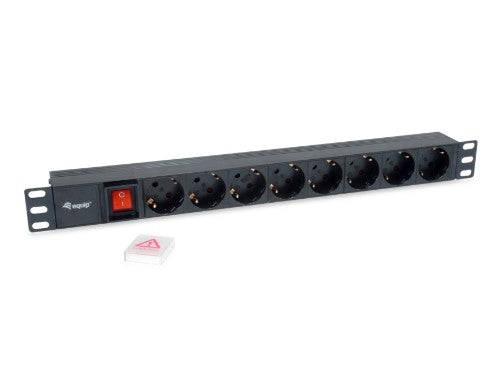

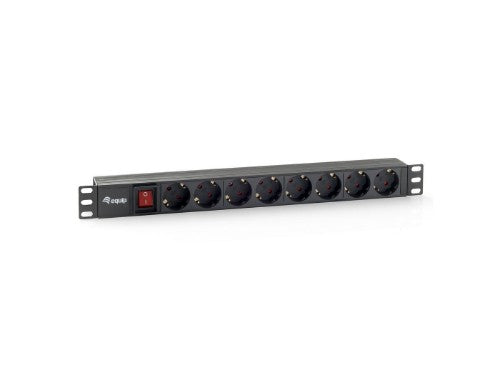

The equip® Power Distribution Unit is a sturdily-built product designed to distribute clear and crisp electricity. The product is thoroughly tested to ensure the functionality and reliability. Attached with an 1.8m cable, built with a power on/off switch, easy-to-install mechanical design, this is the ideal choice for the 19" cabinet system installation.
Specifications
| Design |
|---|
| Mounting |
Horizontal |
| Product colour |
Black |
| Certification |
CE |
| Rack capacity |
1U |
| Housing material |
Plastic |
| Ports & interfaces |
|---|
| AC outlets quantity |
8 AC outlet(s) |
| Features |
|---|
| Cable length |
1.8 m |
| Certification |
CE |
| Management features |
|---|
| Outlet control |
Turn off, Turn on |
| Ergonomics |
|---|
| Cable length |
1.8 m |
| Power |
|---|
| Nominal input voltage |
250 V |
| Maximum current |
16 A |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
CE |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
650 g |
| Width |
486.8 mm |
| Depth |
45 mm |
| Height |
45 mm |
| Package width |
510 mm |
| Package depth |
95 mm |
| Package height |
55 mm |
| Package weight |
720 g |
| Packaging data |
|---|
| Package width |
510 mm |
| Package depth |
95 mm |
| Package height |
55 mm |
| Package weight |
720 g |
| Technical details |
|---|
| Compliance certificates |
RoHS |
