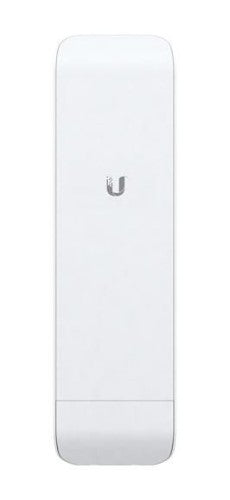

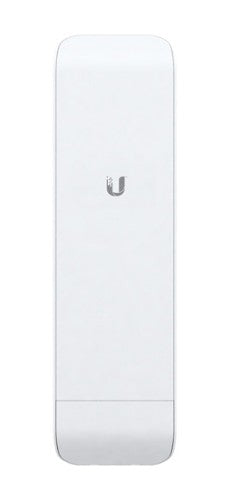

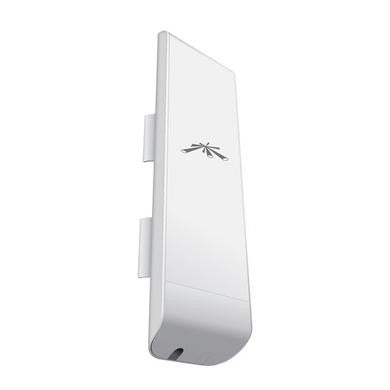

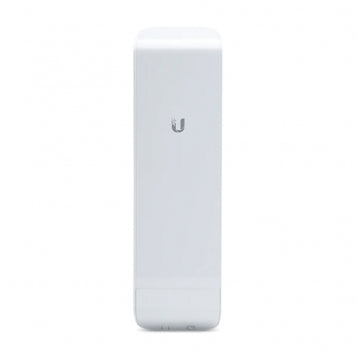

Ubiquiti NanoStation M5, 150 Mbit/s, 10,100 Mbit/s, 4.9 - 5.9 GHz, IEEE 802.3u, 24 V, 0.5 A
Description
Ubiquiti NanoStation M5. Maximum data transfer rate: 150 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s, Frequency band: 4.9 - 5.9 GHz. AC input voltage: 24 V, Input current: 0.5 A, Power consumption (typical): 8 W. Product colour: White, Certification: FCC, CE, RoHS. Antenna gain level (max): 16 dBi. Processor model: Qualcomm Atheros, Processor architecture: MIPS 24Kc, Flash memory: 8 MB
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100 Mbit/s |
| Maximum data transfer rate |
150 Mbit/s |
| Performance |
|---|
| 5 GHz |
Yes |
| Frequency band |
4.9 - 5.9 GHz |
| Networking standards |
IEEE 802.3u |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Certification |
FCC, CE, RoHS |
| Maximum data transfer rate |
150 Mbit/s |
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| Built-in processor |
Yes |
| Processor model |
Qualcomm Atheros |
| Processor architecture |
MIPS 24Kc |
| Wireless LAN features |
|---|
| Frequency band |
4.9 - 5.9 GHz |
| Maximum operating distance |
15000 m |
| Network |
|---|
| Internal |
No |
| Networking standards |
IEEE 802.3u |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Memory |
|---|
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| Features |
|---|
| 5 GHz |
Yes |
| Frequency band |
4.9 - 5.9 GHz |
| Networking standards |
IEEE 802.3u |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Maximum data transfer rate |
150 Mbit/s |
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| Built-in processor |
Yes |
| Processor model |
Qualcomm Atheros |
| Processor architecture |
MIPS 24Kc |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (typical) |
8 W |
| Power over Ethernet (PoE) |
Yes |
| Input current |
0.5 A |
| AC input voltage |
24 V |
| Design |
|---|
| Product colour |
White |
| Internal |
No |
| LED indicators |
Yes |
| Certification |
FCC, CE, RoHS |
| Antenna |
|---|
| Antenna gain level (max) |
16 dBi |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Processor |
|---|
| Built-in processor |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Weight & dimensions |
|---|
| Width |
80 mm |
| Depth |
31 mm |
| Weight |
400 g |
| Height |
294 mm |
| Other features |
|---|
| Maximum operating distance |
15000 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 80 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
