Description
5MP, IP, 2592 x 1944px, 30 fps, 1~1/10000 sec, CMOS 1/3.2", RAW, Fast Ethernet, PoE 802.3af
Key Features
- 2.8-12 mm adjustable Vari-focal length for wide angle surveillance
- Weatherproof IP66-rated housing
- Built-in Micro SDHC/SDXC card slot for local storage
- 5-Megapixel high-definition resolution
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Vandal-proof IK10-rated housing
- Built-in infrared LEDs for night viewing up to 30m
- Video compression: H.264, MJPEG
- Removable IR-cut filter for day and night surveillance
- Power support: PoE (IEEE 802.3af)
- Free surveillance and CMS (Central Management System) software packages with 64-channel license
Description

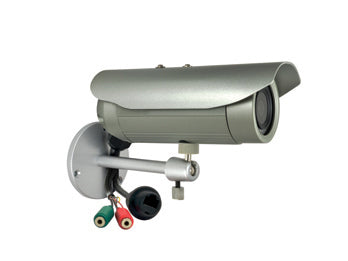

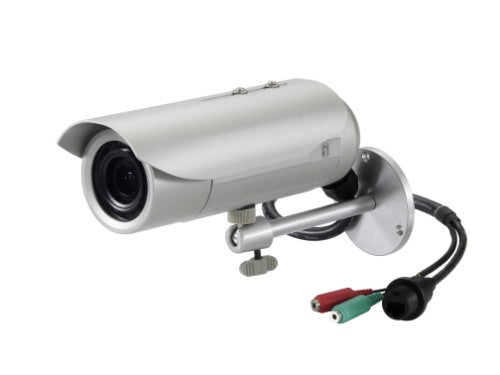

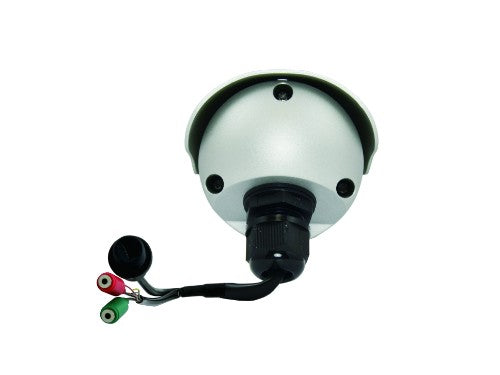

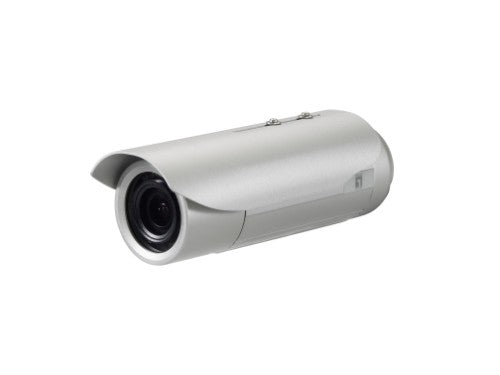

Fixed IP Network Camera - Varifocal Lens - 5-Megapixel - 802.3af PoE - IR LEDs - Vandalproof - two-way audio - Indoor/OutdoorSpecifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, FCC, ONVIF, IP68, IK10, NEMA 4X |
| Design | |
| Weatherproof | Yes |
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | Silver |
| Mounting type | Wall |
| Protection features | Vandal proof |
| LED indicators | Power |
| International Protection (IP) code | IP68 |
| Camera | |
| Minimum illumination | 0.1 lx |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/10000 s |
| Lens viewing angle, horizontal | 69.2° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Lens system | |
| Number of lenses | 1 |
| Focus | Manual |
| Zoom capability | Yes |
| Focus adjustment | 1.4 |
| Focal length range | 2.8 - 12 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 15 |
| Video | |
| Full HD | Yes |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Automatic gain control | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, M-JPEG |
| Maximum resolution | 2592 x 1944 pixels |
| Video formats supported | RAW |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944 |
| Supported video modes | 240p, 480p, 720p, 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Audio | |
| Built-in microphone | No |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Supported network protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Storage | |
| Maximum memory card size | 64 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Terminal block port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | RJ-45 |
| Connectivity technology | Wired |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 5.76 W |
| Certificates | |
| Certification | CE, FCC, ONVIF, IP68, IK10, NEMA 4X |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
| Package type | Box |
| Width | 77 mm |
| Depth | 193 mm |
| Height | 73 mm |
| Weight | 955 g |
| Package width | 285 mm |
| Package height | 100 mm |
| Package depth | 202 mm |
| Package weight | 414 g |
| Packaging data | |
| Package type | Box |
| Package width | 285 mm |
| Package height | 100 mm |
| Package depth | 202 mm |
| Package weight | 414 g |
| Sustainability | |
| Compliance certificates | RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Package type | Box |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| Technical details | |
| Iris | Yes |
| Number of video streams | 2 |
| Back light compensation method | Yes |
| Compliance certificates | RoHS |
| Other features | |
| Focus | Manual |
| Video compression formats | H.264, M-JPEG |
| Logistics data | |
| Master (outer) case width | 565 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 205 mm |
| Master (outer) case gross weight | 11.9 kg |
| Products per master (outer) case | 8 pc(s) |
| Harmonized System (HS) code | 85258900 |
