Description
3MP, IP, 2048 x 1536px, 30 fps, 1~1/10000 sec, CMOS 1/3", 10x Optical Zoom, RAW, Fast Ethernet, PoE 802.3af, WDR
Key Features
- Built-in Micro SDHC/SDXC card slot for local storage
- Weatherproof IP66-rated housing
- 3-Megapixel high-definition resolution
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Supports 350° pan, 180° tilt and 10X optical zoom
- Dual power support: 12V DC/PoE (IEEE 802.3af)
- Video compression: H.264, MJPEG
- Removable IR-cut filter for day and night surveillance
- Free surveillance and CMS (Central Management System) software packages with 64-channel license
Description

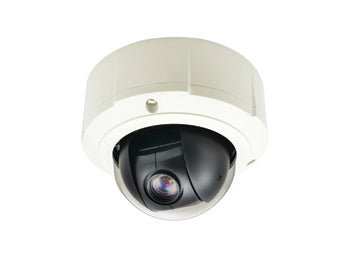

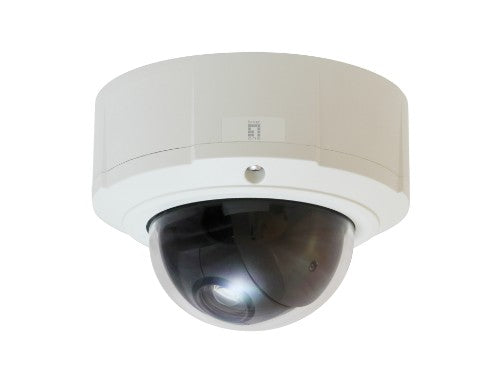

PTZ Dome IP Network Camera - 3-Megapixel - 802.3af PoE - 10X Optical Zoom - two-way audio - Indoor/OutdoorSpecifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, FCC, ONVIF, IP67, NEMA 4X |
| Design | |
| Weatherproof | Yes |
| Country of origin | Taiwan |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| LED indicators | Power |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0.05 lx |
| Tilt angle range | 0 - 180° |
| Pan range | -175 - 175° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/10000 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Number of lenses | 1 |
| Auto focus | Yes |
| Zoom capability | Yes |
| Optical zoom | 10x |
| Focus adjustment | 1.8 - 3.0 |
| Focal length range | 4.9 - 49 mm |
| Night vision | |
| Night vision | Yes |
| Video | |
| Full HD | Yes |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Automatic gain control | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, M-JPEG |
| Maximum resolution | 2048 x 1536 pixels |
| Video formats supported | RAW |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Supported video modes | 240p, 480p, 720p, 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 3 MP |
| Audio | |
| Voice codecs | G.711 |
| Built-in microphone | No |
| Audio system | 2-way |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Storage | |
| Maximum memory card size | 64 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Terminal block port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
| Connectivity technology | Wired |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 10.36 W |
| DC-in jack | Yes |
| Certificates | |
| Certification | CE, FCC, ONVIF, IP67, NEMA 4X |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
| Package type | Box |
| Width | 153 mm |
| Depth | 115 mm |
| Height | 153 mm |
| Weight | 1.26 kg |
| Package width | 197 mm |
| Package height | 179 mm |
| Package depth | 197 mm |
| Package weight | 383 g |
| Packaging data | |
| Package type | Box |
| Package width | 197 mm |
| Package height | 179 mm |
| Package depth | 197 mm |
| Package weight | 383 g |
| Sustainability | |
| Compliance certificates | RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Quick installation guide | Yes |
| Package type | Box |
| Resource CD | Yes |
| Technical details | |
| Iris | Yes |
| Number of video streams | 2 |
| Back light compensation method | Yes |
| Compliance certificates | RoHS |
| Other features | |
| Video compression formats | H.264, M-JPEG |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 367 mm |
| Master (outer) case gross weight | 14.3 kg |
| Products per master (outer) case | 8 pc(s) |
| Harmonized System (HS) code | 85258900 |
