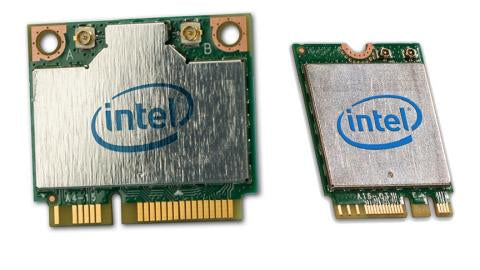

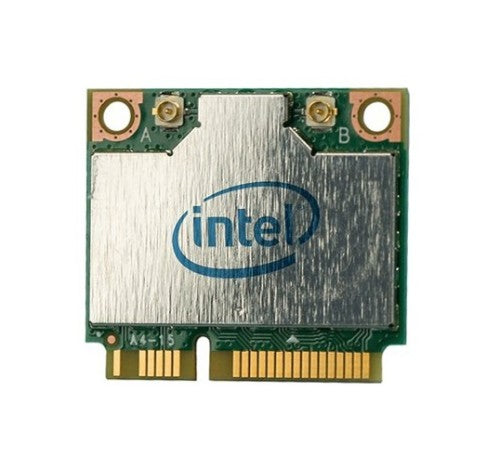

PCIe Half Mini Card, 802.11 ac/a/b/g/n, 300/867 Mbps
Description
The 802.11ac, dual-band, 2x2 Wi-Fi plus Bluetooth* adapter that lets you move at the speed of life with faster speeds (up to 867 Mbps1), higher capacity, broader coverage, and longer battery life. Combined with 4th generation Intel® Core™ processors and exceptional Intel® wireless innovations, the Intel® Dual Band Wireless-AC 7260 dramatically reshapes your connected experience at home, work, or on the go.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Interface |
WLAN / Bluetooth |
| Host interface |
Mini PCI Express |
| Connectivity technology |
Wireless |
| Bandwidth |
|---|
| Maximum data transfer rate |
867 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| WLAN data transfer rates supported |
300,867 Mbit/s |
| Antenna |
|---|
| Frequency range |
2.4 - 5 GHz |
| Network |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Bluetooth version |
4.0 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rates supported |
300,867 Mbit/s |
| Frequency range |
2.4 - 5 GHz |
| Maximum data transfer rate |
867 Mbit/s |
| Design |
|---|
| Internal |
Yes |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 80 °C |
| Weight & dimensions |
|---|
| Width |
30 mm |
| Depth |
2.4 mm |
| Height |
26.8 mm |
| Weight |
3 g |
| Performance |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Bluetooth version |
4.0 |
| Harmonized System (HS) code |
85176990 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
