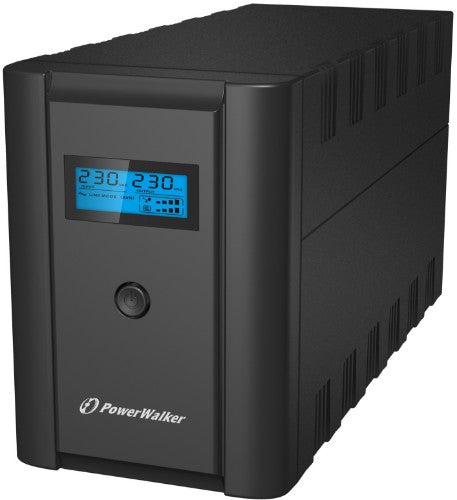

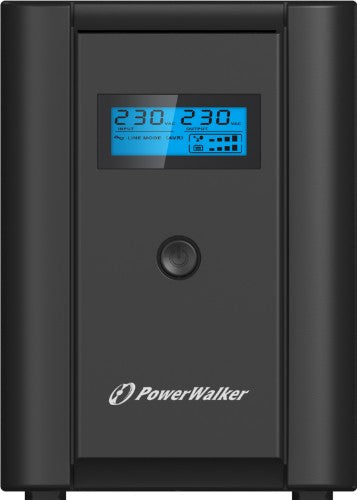

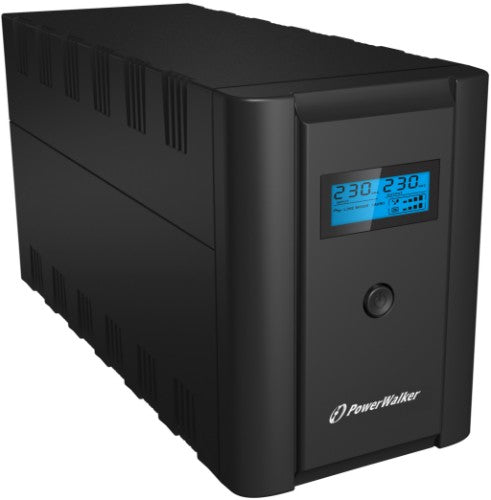

PowerWalker VI 1200 SHL Schuko uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 600 W 4 AC outlet(s)

Line-Interactive, 1200VA, 600W, C14 Input, 2 x Schuko Outlet, 2 x IEC C13 Outlet, 2 x 12V/7Ah, LCD, USB

Description

PowerWalker VI SHL provides comprehensive protection and high power density in small and economic package. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ-11 surge protection. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.

The VI SHL Series are equipped with stronger charger to reach 90% of battery capacity in 2-4h. With HID support for USB communication it allows quick and easy setup with any operating system.

Specifications

Power
Output voltage regulation	10%
Output frequency regulation	1 Hz
Output power factor	0.5
Output power	600 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Efficiency	95%
Output power capacity	1.2 kVA
Charging current	1.2 A
Performance
UPS topology	Line-Interactive
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Features
UPS topology	Line-Interactive
Output voltage regulation	10%
Output frequency regulation	1 Hz
Automatic Voltage Regulation (AVR)	Yes
Output power factor	0.5
Output power	600 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Efficiency	95%
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Output power capacity	1.2 kVA
Input frequency	50/60 Hz
Charging current	1.2 A
Ports & interfaces
Number of type F outputs	2
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	2
Battery
Number of batteries supported	2
Battery voltage	12 V
Battery capacity	7 Ah
Battery recharge time	4 h
Typical backup time at half load	11 min
Typical backup time at full load	1.3 min
Charging current	1.2 A
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Cooling type	Passive
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	85078000
Cooling
Cooling type	Passive
Weight & dimensions
Package width	230 mm
Package depth	452 mm
Package height	292 mm
Weight	8.6 kg
Width	139 mm
Package weight	8.9 kg
Height	195 mm
Depth	365 mm
Packaging data
Cables included	Input power cable, USB cable
Resource CD	Yes
Manual	Yes
Package width	230 mm
Package depth	452 mm
Package height	292 mm
Bundled software	WinPower
Package weight	8.9 kg
Logistics data
Products per pallet	42 pc(s)
Harmonized System (HS) code	85078000
Other features

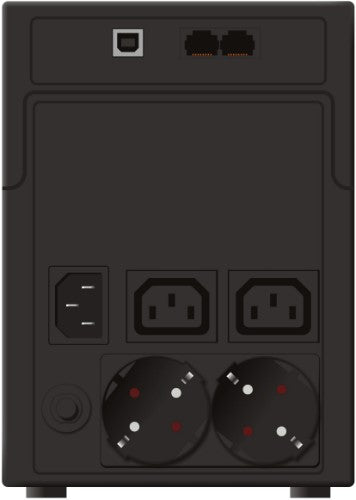

Output connections	2 x Schuko, 2 x IEC C13
Nominal output voltage	230 V
Packaging content
Cables included	Input power cable, USB cable
Resource CD	Yes
Manual	Yes
Bundled software	WinPower
