850VA/480W, 230 VAC, 50/60Hz, USB, RJ-11, 4 x IEC, 5200 g
Description

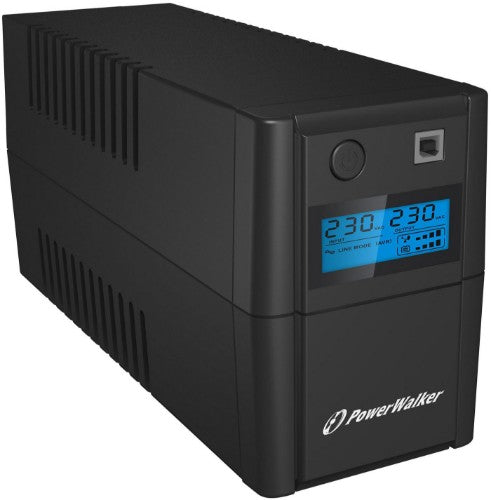

PowerWalker VI 8 50 S E LCD /IEC provides comprehensive protection and high power density in small and economic package. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ - 11 surge protection. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.
Specifications
| Power |
|---|
| Output voltage regulation |
10% |
| Output power |
480 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output power capacity |
0.85 kVA |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output voltage regulation |
10% |
| Output power |
480 W |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output power capacity |
0.85 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|

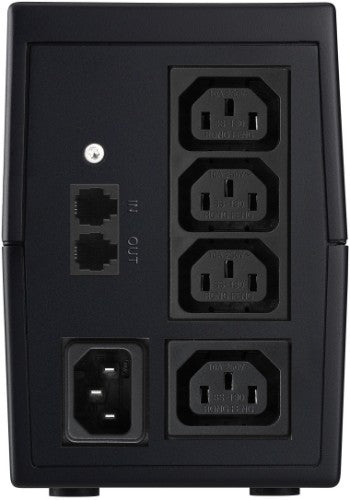

| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| USB 2.0 ports quantity |
1 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Number of batteries supported |
1 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery recharge time |
6 h |
| Cold start |
Yes |
| Design |
|---|
| Form factor |
Mini Tower |
| Product colour |
Black |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Package width |
139 mm |
| Package depth |
345 mm |
| Package height |
226 mm |
| Weight |
5.2 kg |
| Width |
100 mm |
| Package weight |
5.54 kg |
| Height |
143 mm |
| Depth |
290 mm |
| Packaging data |
|---|
| Package width |
139 mm |
| Package depth |
345 mm |
| Package height |
226 mm |
| Bundled software |
WinPower |
| Package weight |
5.54 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Packaging content |
|---|
| Bundled software |
WinPower |
