Description
14-Slot Media Converter Chassis, 100-265VAC, 50/60Hz, 60W

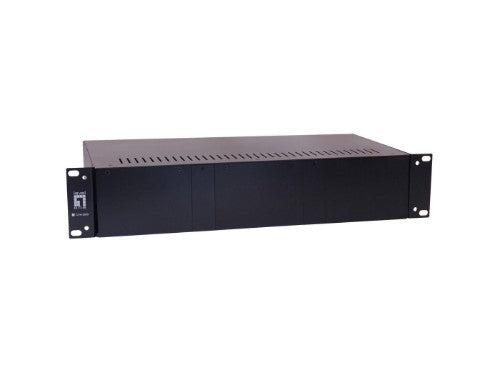

The LevelOne CVH-2000 media converter chassis is able to host up to 14 media converters. The chassis
supports LevelOne FVT-2001/2002/2201/2401 and GVT-2000/2001 Media Converts. All converters are
individually secured into the chassis and can be hot-swapped for maximum connection reliability.

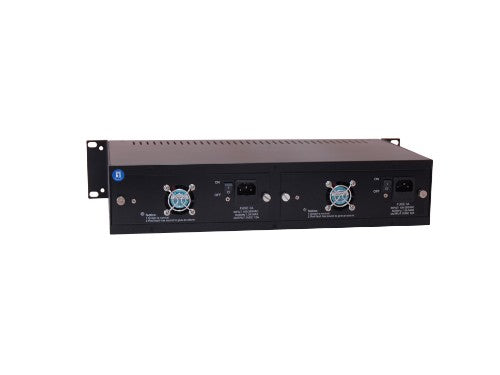

The dual power supplies ensure continuous network operation. The Chassis is a standard 19-inch rack-
mountable size that easily fits into a server rack.
- Supports 14 slots for various type of Media Converters
- Converter module hot-swappable
- 10°C ~ 55°C operating temperature range
Description
14-Slot Media Converter ChassisThe LevelOne CVH-2000 media converter chassis is able to host up to 14 media converters. The chassis
supports LevelOne FVT-2001/2002/2201/2401 and GVT-2000/2001 Media Converts. All converters are
individually secured into the chassis and can be hot-swapped for maximum connection reliability.
The dual power supplies ensure continuous network operation. The Chassis is a standard 19-inch rack-
mountable size that easily fits into a server rack.
- Supports 14 slots for various type of Media Converters
- Converter module hot-swappable
- 10°C ~ 55°C operating temperature range
Specifications
| Technical details | |
|---|---|
| Number of bays | 14 |
| Country of origin | China |
| Compatible products | FVT-2001 FVT-2002 FVT-2201 FVT-2401 GVT-2000 GVT-2001 |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Size (imperial) | 48.3 cm (19") |
| LED indicators | Power |
| Product colour | Black |
| Compliance certificates | RoHS |
| Power | |
| AC input voltage | 100-265 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 427 mm |
| Weight | 420 g |
| Height | 91 mm |
| Depth | 315 mm |
| Packaging data | |
| Package width | 550 mm |
| Package depth | 410 mm |
| Package height | 185 mm |
| Package weight | 860 g |
| Package dimensions (WxDxH) | 550 x 410 x 185 mm |
