PoE Injector, 56W, 2 x 10/100Base-T RJ-45, 24V, 2.7A, IEEE 802.3x/af
Description
- 56 Watt High-Power PSE Power Injector
- Sends Power over Ethernet to remote devices
- Ethernet 100Mbps Wire Speed
- Simple to install-plug & play
- Power Protection: OCP, OVP
Background
The IEEE 802.3af standard limits the maximum current on an Ethernet cable to 350Ma. This provides for a maximum end-point power consumption of 12.95 Watts, which is fine for some devices. But many professional networking devices require more power.
Introducting the ultimate solution for high-power PoE

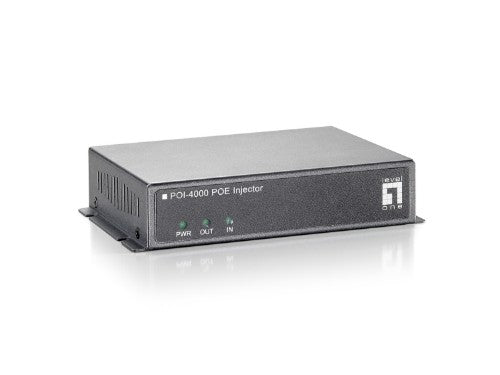

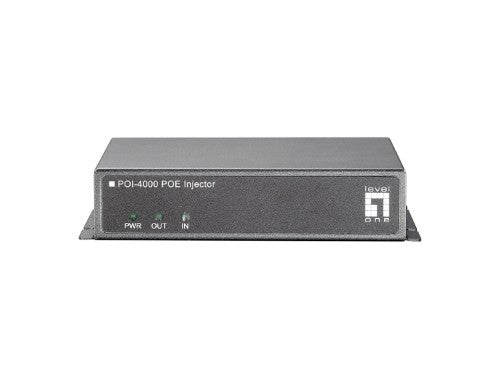

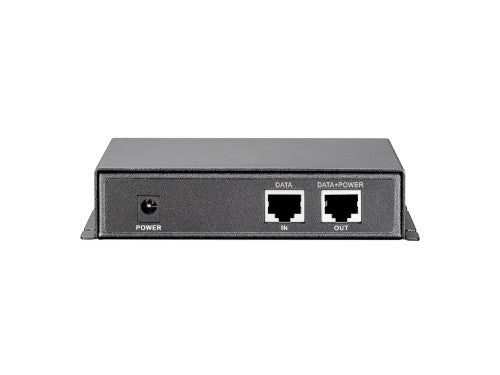

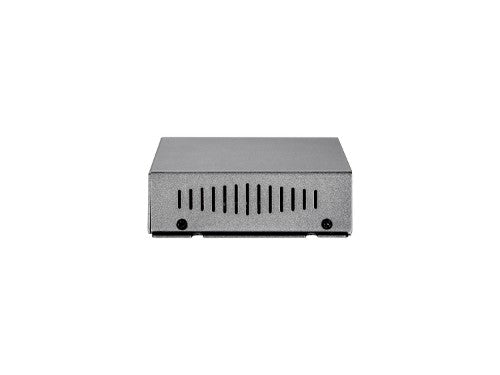

LevelOne POI-4000(-Z) is a high power, PSE Power Injector for use in Power over Ethernet systems. With Ethernet Input (data only) port and Output (data power) port, POI-4000(-Z) delivers up to 60 Watts over Cat.5/6/7. This provides excellent support for PD devices such as PoE IP surveillance, outdoor access points or PoE VoIP telephones.
Maximize your PoE network

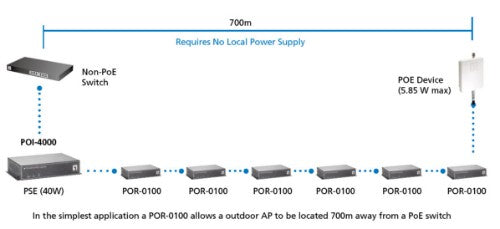

POI-4000(-Z) can work with PoE Repeaters to extend the PoE network several hundred meters. This unbeatable solution is available only from LevelOne! It brings long distances with no latency or loss of network speed.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3af |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet interface type |
Fast Ethernet |
| Power over Ethernet (PoE) voltage |
56 V |
| Features |
|---|
| Plug and Play |
Yes |
| Maximum operating distance |
100 m |
| Product colour |
Black |
| Networking standards |
IEEE 802.3, IEEE 802.3af |
| Power protection features |
Over current, Over voltage |
| Country of origin |
Taiwan |
| LED indicators |
LAN, Power |
| Certification |
FCC Rules Part 15 Class A
CE |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Output current |
1 A |
| Power consumption (max) |
12.95 W |
| Total Power over Ethernet (PoE) budget |
56 W |
| Power over Ethernet (PoE) voltage |
56 V |
| Input voltage |
24 V |
| Input current |
2.7 A |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Power over Ethernet (PoE) |
Yes |
| Input voltage |
24 V |
| Input current |
2.7 A |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet interface type |
Fast Ethernet |
| Harmonized System (HS) code |
85044095 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
90 x 120 x 28 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Number of products included |
1 pc(s) |
| Certificates |
|---|
| Certification |
FCC Rules Part 15 Class A
CE |
| Indication |
|---|
| LED indicators |
LAN, Power |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
