Description
CCD, 1D, LED, 1 MB Flash ROM, 96 kB SRAM, mini USB, Bluetooth 2.1, 36 x 83 x 21.5 mm
Even though it features one of the industry’s most technically advanced CCD Linear Sensor scan engines, the OPN-4000i comes at a very affordable price point that enables any business to integrate barcode scanning into their mobile applications.
Product highlights include:
- CCD linear sensor rapidly scans and decodes 1D barcodes
- Ready-to-go out of the box, just pair it with your Bluetooth device
- Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
- Memory: 1 MB Flash ROM, 96 kB SRAM
- Small form factor: weighs only 1.87 oz, 3.27 x 1.42 x 0.85 in (LxWxD)
- Audible and visible feedback after a successful scan
- USB rechargeable, high capacity Lithium-Ion battery
- Extremely durable and reliable with a comprehensive two-year warranty that protects your investment
Description

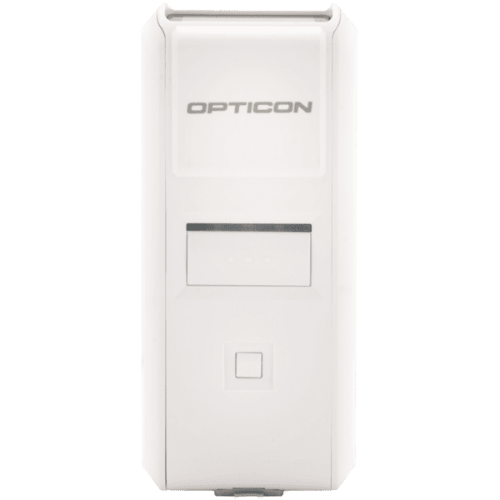

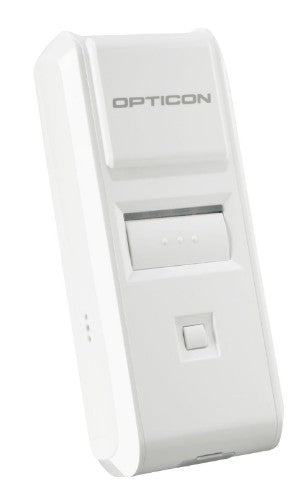

The OPN-4000i Bluetooth Companion Scanner (CCD Linear Sensor) enables real-time barcode scanning into any Bluetooth ready device including Apple, Android and Windows. The OPN-4000i scanner is extremely small, easily sliding into a pocket or on a keychain making it an ideal solution for field sales and service, retail point-of-sale (POS), inventory management, asset tracking and many more.Even though it features one of the industry’s most technically advanced CCD Linear Sensor scan engines, the OPN-4000i comes at a very affordable price point that enables any business to integrate barcode scanning into their mobile applications.
Product highlights include:
- CCD linear sensor rapidly scans and decodes 1D barcodes
- Ready-to-go out of the box, just pair it with your Bluetooth device
- Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
- Memory: 1 MB Flash ROM, 96 kB SRAM
- Small form factor: weighs only 1.87 oz, 3.27 x 1.42 x 0.85 in (LxWxD)
- Audible and visible feedback after a successful scan
- USB rechargeable, high capacity Lithium-Ion battery
- Extremely durable and reliable with a comprehensive two-year warranty that protects your investment
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, S-Code, Telepen, Trioptic, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Optical sensor resolution | 1500 pixels |
| Yaw reading angle | -65 - 65° |
| Tilt reading angle | -25 - 25° |
| Sensor type | CCD |
| Scanner type | 1D |
| Pitch reading angle | -50 - 50° |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Bluetooth version | 2.1+EDR |
| Standard interfaces | Bluetooth |
| Performance | |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| RAM capacity | 0.096 MB |
| Built-in processor | Yes |
| Processor frequency | 96 MHz |
| International Protection (IP) code | IP42 |
| Internal memory | 1 MB |
| Product colour | White |
| Certification | CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1 |
| Buzzer | Yes |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Certification | CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1 |
| Power | |
| Power source type | Battery |
| Number of batteries supported | 1 |
| Battery life | 25 h |
| Battery voltage | 3.7 V |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 600 mAh |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 21.5 mm |
| Height | 83 mm |
| Weight | 53 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| RAM capacity | 0.096 MB |
| Built-in processor | Yes |
| Processor frequency | 96 MHz |
| International Protection (IP) code | IP42 |
| Internal memory | 1 MB |
| Product colour | White |
| Certification | CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1 |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
