Description

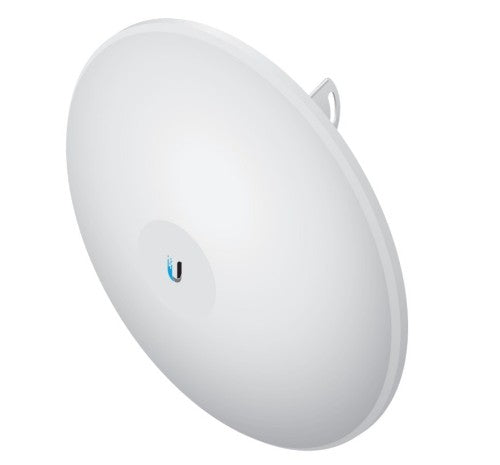

PBE-5AC-500 - 5GHz, 27dBi, 500mm
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome
The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.
Description
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome
The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.
Specifications
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | Atheros MIPS 74Kc |
| Processor frequency | 720 MHz |
| Internal memory type | DDR2 |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Antenna gain level (max) | 27 dBi |
| Frequency band | 5 GHz |
| Features | |
| Survival wind speed | 96 km/h |
| Wind load | 264.6 |
| LED indicators | LAN, Power, WLAN |
| Antenna gain level (max) | 27 dBi |
| Frequency band | 5 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Polarization | Dual polarization |
| Mounting | Pole |
| Product colour | White |
| Certification | FCC, IC, CE |
| Power | |
| Power consumption (max) | 8.5 W |
| Technical details | |
| Antenna gain level (max) | 27 dBi |
| Frequency band | 5 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Polarization | Dual polarization |
| Mounting | Pole |
| Harmonized System (HS) code | 85177100 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | White |
| Certificates | |
| Certification | FCC, IC, CE |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 3.15 kg |
| Width | 525 mm |
| Depth | 315 mm |
| Height | 525 mm |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
| Other features | |
| Dimensions (WxDxH) | 620 x 620 x 386 mm |
