Description
19" Network Cabinet - Wall Mount (Standard), 15U, 600mm Deep, Black, Flatpack, Max 60kg, Metal & Glass Door, Back Panel, Removeable Sides, Suitable also for use on desk or floor, Usable Depth 410mm, Parts for wall installation not included
We offer you a solution for every need. _x000D_
_x000D_
Various options include:_x000D_
Removable side panels (some lockable)._x000D_
Tempered/Toughened glass doors. _x000D_
Double Section, making cabling and component exchange simple.
Key Features
- Ideal for 19" rackmount applications
- Maximum static load of 60 kg

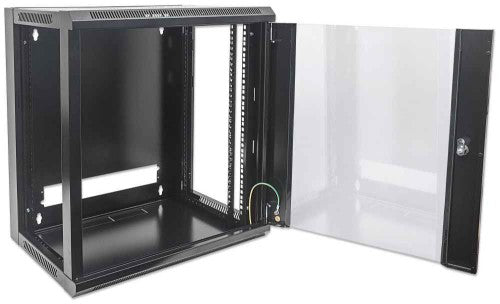

- Tempered-glass door can be opened more than 180°
- Cable entry via rear or top panel
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door
- Easily removable side panels
- Ships flatpacked
- Three-Year Warranty
Description
The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & grey (RAL7035)._x000D_We offer you a solution for every need. _x000D_
_x000D_
Various options include:_x000D_
Removable side panels (some lockable)._x000D_
Tempered/Toughened glass doors. _x000D_
Double Section, making cabling and component exchange simple.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Rack capacity | 15U |
| Adjustable mounting rails | Yes |
| Removable side panels | Yes |
| Front door construction | Glass |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 60 kg |
| Material | SPCC |
| Product colour | Black |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Adjustable depth | Yes |
| Weight & dimensions | |
| Width | 570 mm |
| Depth | 600 mm |
| Height | 770 mm |
| Weight | 30 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 60 kg |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Rack capacity | 15U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7 |
| Packaging content | |
| Side panels included | Yes |
| Material | |
| Material | SPCC |
