Mini ATX, 4 x 2.5, 1 x 2.5, 2 x USB 3.0, 194 x 200 x 270 mm
Description

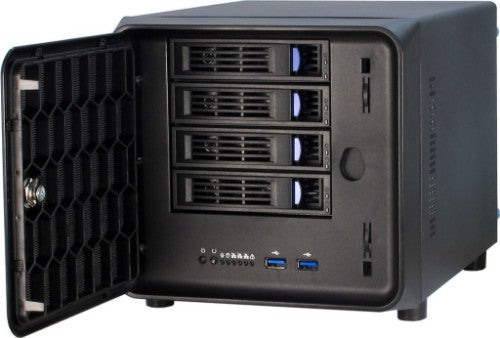

The IPC SC-4100 is a case for Mini ITX Mainboards with a quadruple Hot-Swap rack for hard drives.

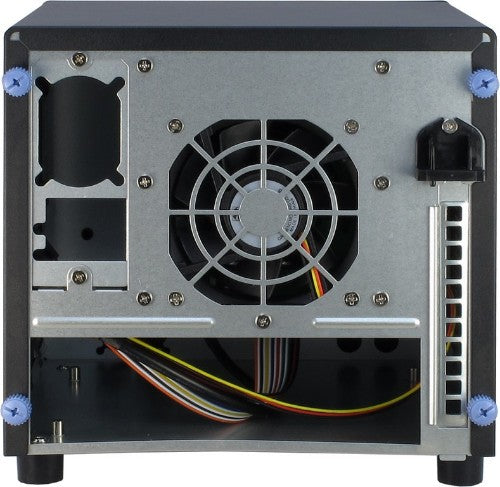

One included 80mm fan, as well as an optional 40mm fan, cares for clean air and therefore for an impeccable cooling system.

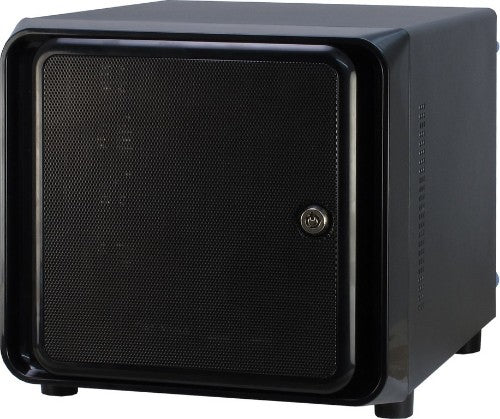

One Flex ATX or 1HU server power supply can be mounted. The slot opening is suitable for the mounting of a short flat graphic card. One 2.5" hard drive or one SSD can also be mounted. One lockable door completes this total package.
Specifications
| Design |
|---|
| Material thickness |
1 mm |
| Material |
Steel |
| Number of 3.5" bays |
4 |
| Rack mounting |
Yes |
| Supported motherboard form factors |
Mini-ITX |
| Side window |
No |
| Reset button |
Yes |
| LED indicators |
Yes |
| Built-in speaker(s) |
No |
| Product colour |
Black |
| Type |
Server |
| Form factor |
Rack |
| Rack capacity |
1U |
| Technical details |
|---|
| Number of 3.5" bays |
4 |
| Rack mounting |
Yes |
| Supported motherboard form factors |
Mini-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
No |
| Reset button |
Yes |
| Hot-swap |
Yes |
| Built-in speaker(s) |
No |
| Product colour |
Black |
| Type |
Server |
| Form factor |
Rack |
| Products per pallet |
4 pc(s) |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Steel |
| Material thickness |
1 mm |
| Indication |
|---|
| LED indicators |
Yes |
| Ergonomics |
|---|
| Reset button |
Yes |
| LED indicators |
Yes |
| Power supply |
|---|
| Power supply included |
No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Audio input |
No |
| Audio output |
No |
| USB 2.0 ports quantity |
1 |
| Cooling |
|---|
| Number of front fans supported (max) |
1 |
| Front fans diameters supported |
40 mm |
| Rear fans installed |
1x 80 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
80 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Hot-swap |
Yes |
| Weight & dimensions |
|---|
| Width |
194 mm |
| Depth |
200 mm |
| Height |
270 mm |
| Weight |
2.66 kg |
| Material thickness |
1 mm |
| Packaging data |
|---|
| Package width |
315 mm |
| Package height |
237 mm |
| Package depth |
245 mm |
| Package weight |
3.08 kg |
| Logistics data |
|---|
| Products per pallet |
4 pc(s) |
| Other features |
|---|
| Harmonized System (HS) code |
84733080 |
| Products per pallet |
4 pc(s) |
