Description
CCD, 1D, LED, 1 MB Flash ROM, 96 kB SRAM, mini USB, Bluetooth 2.1, 36 x 83 x 21.5 mm
Applications
The OPN-4000 enables organizations to integrate barcode scanning in their business process or service with a simple and to the point companion. Some of the uses include: Sales and service, retail point-of-sale, inventory management, asset tracking, visitor registration and inventory. Clearly a wide audience for such a versatile product.
How we describe the OPN-4000
This device is a CCD scanner with a very intuitive interface, is lightweight and fits in the palm of your hand. The Bluetooth enables the device for real-time data transfer. The scanner comes in two versions: version i and version n. The n is purely the OPN-4000 in all its glory, the I is the OPN-4000 with an special addition; It is Apple MFi certified. This means that it can connect to Apple products like the iPhone, iPod and iPad. When no Bluetooth connection can be made the OPN-4000 will store the data on the device until there is an connection again or when plugged in with an USB-cable.
Using the scanner is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.
Features
A few highlights why the OPN-4000 should be in your hands:
- CCD scanning
- Apple MFi certified
- Bluetooth connection
- Lightweight
Description

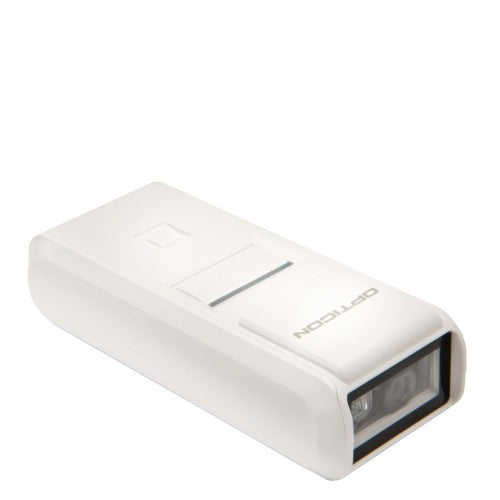

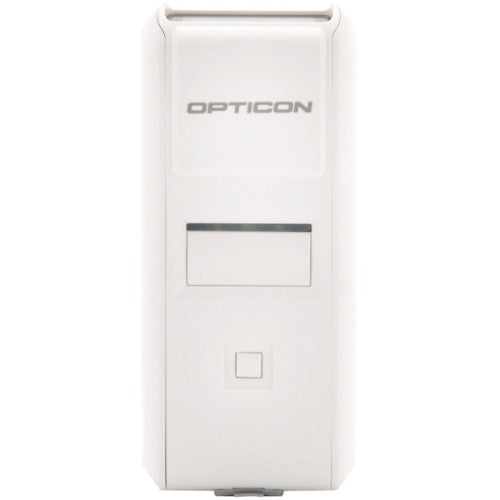

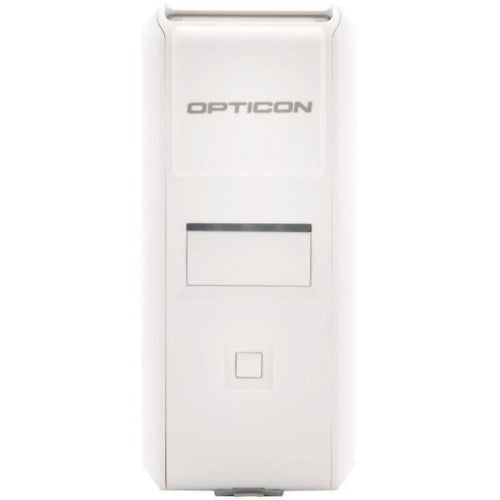

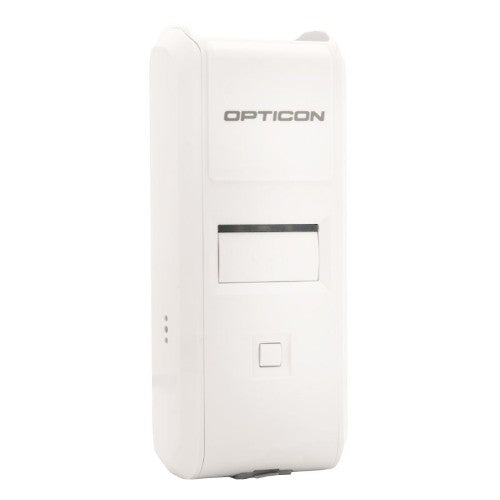

The OPN-4000 is a compact lightweight companion scanner that is easy to take with you and can connect to other devices through Bluetooth. The clean white design and the compact dimensions make this product look and feel state of the art. And rightfully so, as the CCD engine is powerful and the data transfer is fast.Applications
The OPN-4000 enables organizations to integrate barcode scanning in their business process or service with a simple and to the point companion. Some of the uses include: Sales and service, retail point-of-sale, inventory management, asset tracking, visitor registration and inventory. Clearly a wide audience for such a versatile product.
How we describe the OPN-4000
This device is a CCD scanner with a very intuitive interface, is lightweight and fits in the palm of your hand. The Bluetooth enables the device for real-time data transfer. The scanner comes in two versions: version i and version n. The n is purely the OPN-4000 in all its glory, the I is the OPN-4000 with an special addition; It is Apple MFi certified. This means that it can connect to Apple products like the iPhone, iPod and iPad. When no Bluetooth connection can be made the OPN-4000 will store the data on the device until there is an connection again or when plugged in with an USB-cable.
Using the scanner is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.
Features
A few highlights why the OPN-4000 should be in your hands:
- CCD scanning
- Apple MFi certified
- Bluetooth connection
- Lightweight
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, JAN, MSI, Plessey, Telepen, Trioptic, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Optical sensor resolution | 1500 pixels |
| Yaw reading angle | -65 - 65° |
| Tilt reading angle | -25 - 25° |
| Sensor type | CCD |
| Scanner type | 1D |
| Pitch reading angle | -50 - 50° |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Bluetooth version | 2.1+EDR |
| Standard interfaces | Bluetooth |
| Performance | |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Built-in processor | Yes |
| Processor frequency | 96 MHz |
| International Protection (IP) code | IP42 |
| Internal memory | 1 MB |
| Product colour | White |
| Certification | CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1 |
| Buzzer | Yes |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Certification | CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1 |
| Power | |
| Power source type | Battery |
| Number of batteries supported | 1 |
| Battery life | 25 h |
| Battery voltage | 3.7 V |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 600 mAh |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 21.5 mm |
| Height | 83 mm |
| Weight | 53 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Built-in processor | Yes |
| Processor frequency | 96 MHz |
| International Protection (IP) code | IP42 |
| Internal memory | 1 MB |
| Product colour | White |
| Certification | CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1 |
| Buzzer | Yes |
| Compliance certificates | RoHS |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Packaging content | |
| Cables included | USB |
