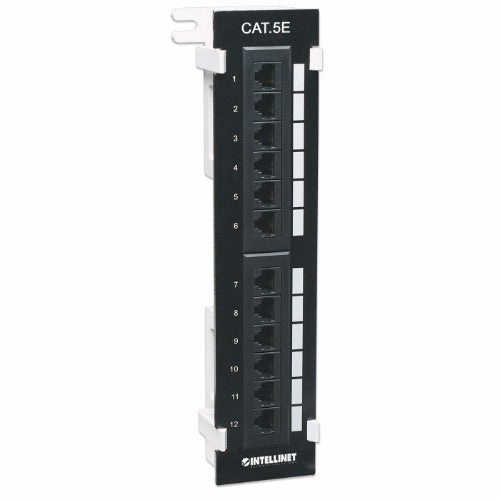

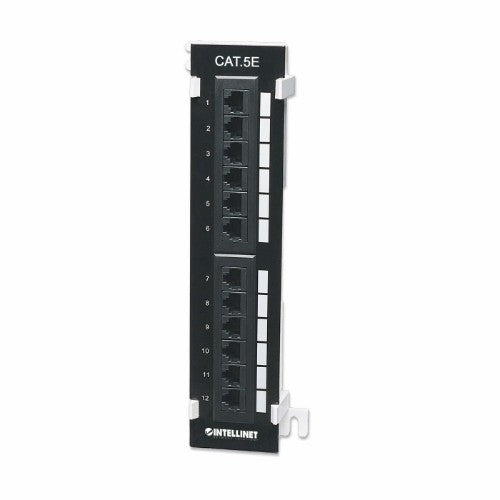

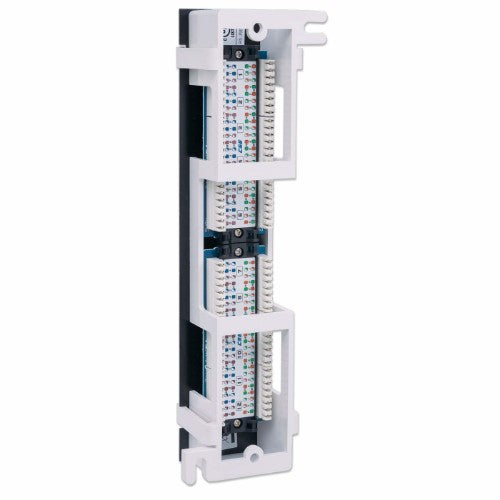

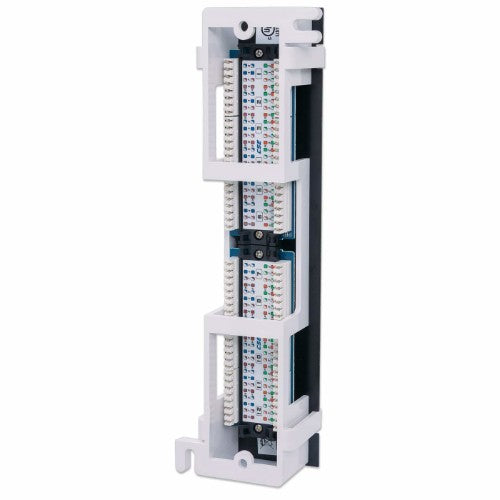

Patch Panel, Cat5e, Wall-mount, UTP, 12-Port, Black
Key Features
- Solid and reliable terminations for copper cabling featuring a minimum of 3mm, 50 micro-inch, gold-plated jack contacts
- Compatible with both 110 and Krone punch-down tools
- Supports 22 to 26 AWG stranded and solid wire
- For use with unshielded twisted pair (UTP) Cat5e network cable
- Cat5e performance is in compliance with the ANSI/TIA/EIA 568 B.2 standard
- Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
- Connects RJ45 ports to a network
- Lifetime Warranty
Description
The backbone of your network is central to your organisation's success. Trust Intellinet Network Solutions to provide Patch Panels that maintain the integrity of your data. The Patch Panel enables you to quickly change the port assignment of any piece of equipment that's attached to your network. Our range of Patch Panels feature varying port densities across a complete range of specifications–from Cat5e to Cat6a in both Unshielded and Shielded varieties. All Patch Panels comply with current industry standards and are 19”-rack compliant.
Specifications
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Cable types supported |
Cat5e, Cat6a |
| Ports quantity |
12 |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology |
10/100/1000BASE-T(X) |
| Design |
|---|
| Mounting |
Rack mounting |
| Product colour |
Black |
| Certification |
UL E157358 |
| Certificates |
|---|
| Certification |
UL E157358 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 80 °C |
| Weight & dimensions |
|---|
| Width |
254 mm |
| Weight |
400 g |
| Height |
47 mm |
| Depth |
82 mm |
| Features |
|---|
| Mounting |
Rack mounting |
| Product colour |
Black |
| Certification |
UL E157358 |
| Technical details |
|---|
| Mounting |
Rack mounting |
| Operating temperature (T-T) |
-40 - 80 °C |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Harmonized System (HS) code |
85371098 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Harmonized System (HS) code |
85371098 |
