Description

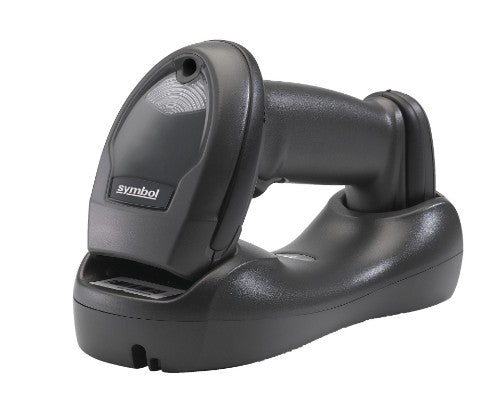

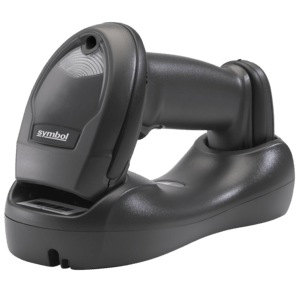

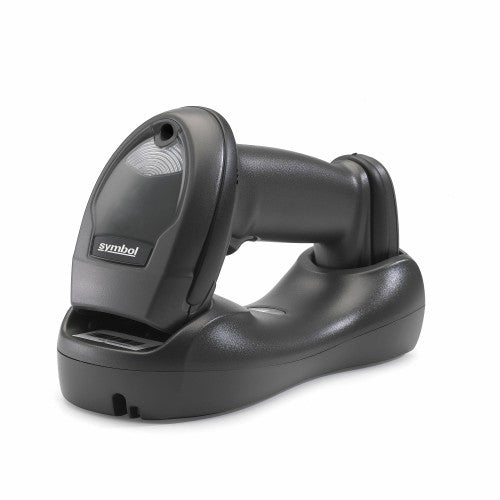

Li4278 Cordless linear scanner
Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance.
The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.
Description
THE NEXT GENERATION IN 1D SCANNINGBuilt for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance.
The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.
Specifications
| Scanning | |
|---|---|
| Yaw reading angle | 0 - 65° |
| Wavelength | 612 nm |
| Tilt reading angle | 0 - 45° |
| Tilt angle range | 0 - 35° |
| Read rate (max) | 547 reads/s |
| Pitch reading angle | 0 - 65° |
| Maximum scan width | 10 cm |
| Maximum range | 6 m |
| Light levels (direct sunlight) | 0 - 108 lx |
| Decoding standards | UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 |
| Ports & interfaces | |
| Cable length | 1.8 m |
| Bluetooth | Yes |
| Standard interfaces | RS-232, RS-485, USB, Keyboard wedge |
| Performance | |
| LED indicators | Charging, Power |
| Housing material | Plastic |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Certification | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 RoHS 2002/95/EEC |
| Light levels (direct sunlight) | 0 - 108 lx |
| Design | |
| LED indicators | Charging, Power |
| Housing material | Plastic |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Certification | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 RoHS 2002/95/EEC |
| Power | |
| Battery technology | Lithium Polymer (LiPo) |
| Weight & dimensions | |
| Weight | 224 g |
| Technical details | |
| LED indicators | Charging, Power |
| Housing material | Plastic |
| Shockproof | No |
| Safety | C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1 |
| Light source | LED |
| International Protection (IP) code | IP54 |
| Display | 0 |
| Dimensions (WxDxH) | 70 x 186 x 98 mm |
| Product colour | Black |
| Certification | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 RoHS 2002/95/EEC |
| Harmonized System (HS) code | 84716070 |
| Packaging data | |
| Cables included | RS-232 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Light levels (direct sunlight) | 0 - 108 lx |
| Packaging content | |
| Cables included | RS-232 |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Shockproof | No |
| Safety | C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1 |
| Light source | LED |
| Display | 0 |
| Dimensions (WxDxH) | 70 x 186 x 98 mm |
