Description
Bi-directional, 650 nm, 100 scans/sec, RS-232, USB, 122g, Black
Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.
Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.
Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.
Intuitive scanning and plug-and-play capability
Minimizes setup and training time.
Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.
Description

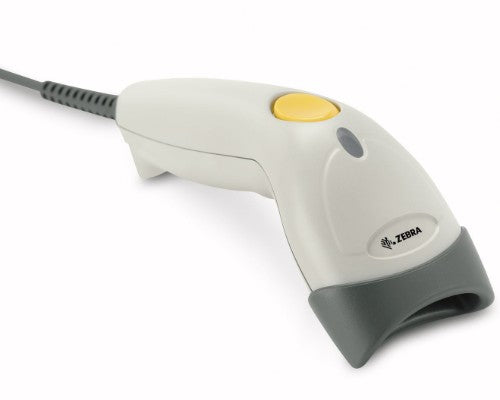

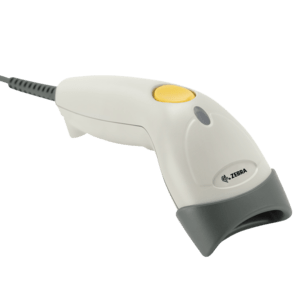

This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying — ensuring accuracy in all customer transactions — and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.Durable, single-board construction
Meets 5-ft drop tests, significantly reducing downtime and repair costs.
Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.
Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.
Intuitive scanning and plug-and-play capability
Minimizes setup and training time.
Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Wavelength | 650 nm |
| Tilt reading angle | -30 - 30° |
| Sensor type | Laser |
| Read rate (max) | 100 reads/s |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| Product colour | Black |
| Design | |
| Type | Handheld bar code reader |
| Product colour | Black |
| Power | |
| Power consumption | 100 mA |
| Power source type | DC |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 60.9 mm |
| Depth | 180.3 mm |
| Height | 60.9 mm |
| Weight | 122 g |
| Technical details | |
| Type | Handheld bar code reader |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
