Description

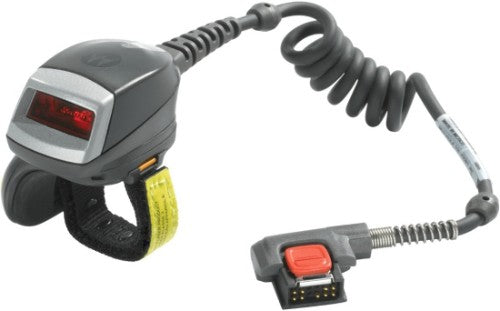

Wearable Ring Scanner + Cable to Arm - 650nm Laser, IP54, 56g, Grey
Hands-free scanning
Ring scanner design frees operator's hands to move packages, products or materials, helping to improve efficiency and productivity.
SE966 scan engine
Provides superior scanning performance and the ability to read even damaged or poorly printed bar codes.
Wide working range
Patented Adaptive Scanning technology enables scanning from near contact to 15 ft./ 4.5 m for increased worker productivity.
Superior trigger ergonomics
Accommodates wide range of gloved and ungloved hand sizes; large accessible trigger makes it easier to use over long periods.
Die cast zinc scan engine chassis, single board construction, scan engine isolation
Provides superior impact protection for scan engine.
Separate finger strap assembly
Improves hygiene and personalization; easy to replace
Swivel feature
Enables easy switching from right to left hand use.
Description
Enable your workers with next generation hands-free scanning to improve operational efficiency in your warehouse, distribution center or retail store with the RS419 ring-style scanner. Paired with our wearable mobile computers, the RS419 provides hands-free freedom — no longer will workers waste time setting an item down to check a paper work order or picking up a handheld device to scan a bar code. Productivity increases — you can handle more volume without adding more staff. Workers get the valuable double-checks they need to ensure task accuracy. And real-time inventory information provides the visibility needed to reduce out-of-stocks.Hands-free scanning
Ring scanner design frees operator's hands to move packages, products or materials, helping to improve efficiency and productivity.
SE966 scan engine
Provides superior scanning performance and the ability to read even damaged or poorly printed bar codes.
Wide working range
Patented Adaptive Scanning technology enables scanning from near contact to 15 ft./ 4.5 m for increased worker productivity.
Superior trigger ergonomics
Accommodates wide range of gloved and ungloved hand sizes; large accessible trigger makes it easier to use over long periods.
Die cast zinc scan engine chassis, single board construction, scan engine isolation
Provides superior impact protection for scan engine.
Separate finger strap assembly
Improves hygiene and personalization; easy to replace
Swivel feature
Enables easy switching from right to left hand use.
Specifications
| Scanning | |
|---|---|
| Type | Wearable bar code reader |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Yaw reading angle | -40 - 40° |
| Wavelength | 650 nm |
| Tilt reading angle | -35 - 35° |
| Sensor type | Laser |
| Pitch reading angle | -65 - 65° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Performance | |
| International Protection (IP) code | IP54 |
| Product colour | Grey |
| Design | |
| Type | Wearable bar code reader |
| International Protection (IP) code | IP54 |
| Product colour | Grey |
| Power | |
| Power consumption | 92 mA |
| Power source type | DC |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 48 mm |
| Height | 48 mm |
| Weight | 56.7 g |
| Technical details | |
| Type | Wearable bar code reader |
| International Protection (IP) code | IP54 |
| Product colour | Grey |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -30 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
