Description

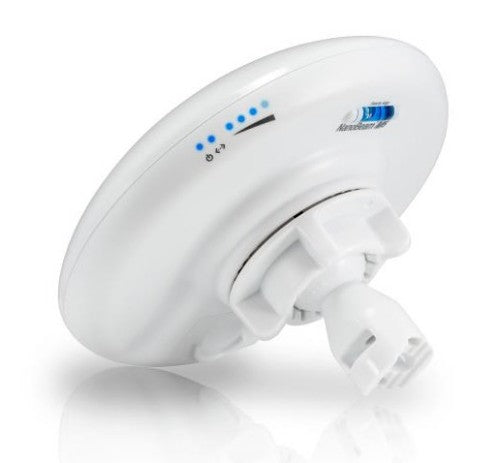

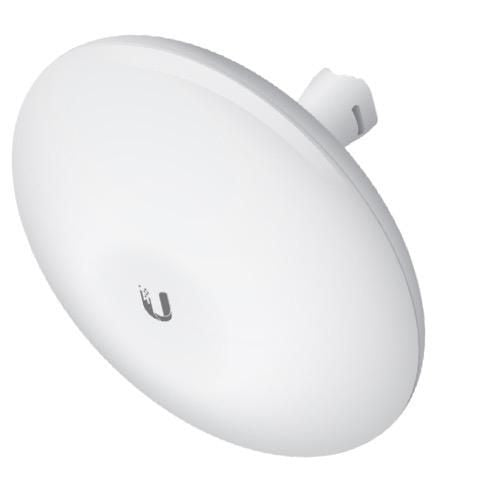

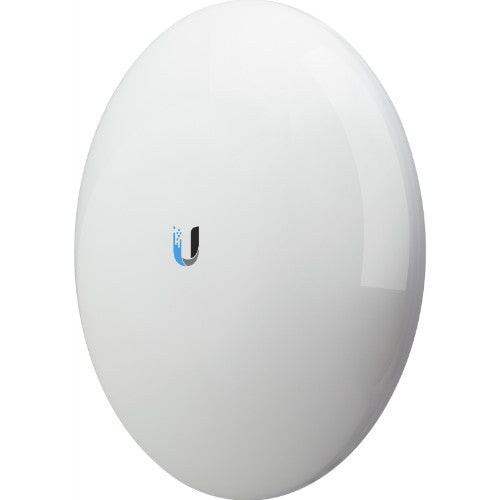

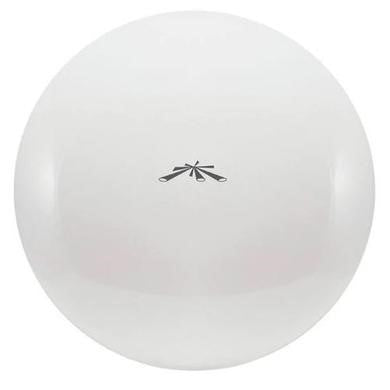

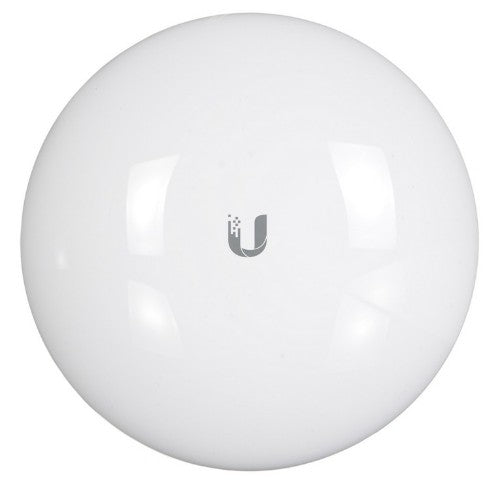

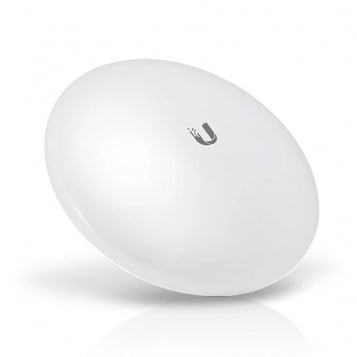

NanoBeam M5, 16dBi, 5GHz
Plug and Play Installation
The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Description
Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.Plug and Play Installation
The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 16 dBi |
| Frequency band | 5 GHz |
| Features | |
| Polarization | Dual polarization |
| Mounting | Wall |
| Product colour | White |
| Antenna gain level (max) | 16 dBi |
| Frequency band | 5 GHz |
| Certification | FCC, IC, CE |
| Power | |
| Power consumption | 500 mA |
| Power requirements | 24V |
| Certificates | |
| Certification | FCC, IC, CE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 320 g |
| Width | 140 mm |
| Depth | 140 mm |
| Height | 54 mm |
| Technical details | |
| Antenna gain level (max) | 16 dBi |
| Frequency band | 5 GHz |
| Polarization | Dual polarization |
| Mounting | Wall |
| Harmonized System (HS) code | 85177100 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
