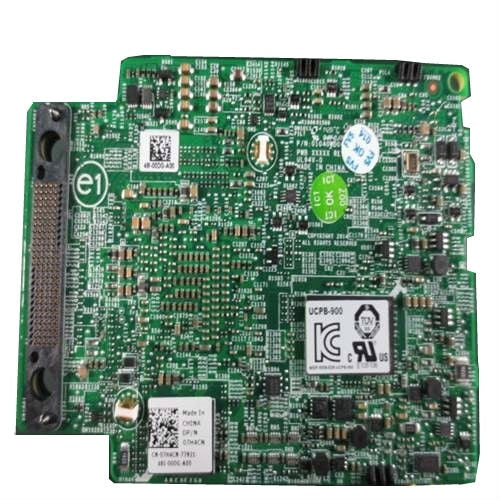

DELL 405-AAEK, SAS, Serial ATA III, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, 8 channels, PowerEdge R430 PowerEdge R530 PowerEdge R630 PowerEdge R640 PowerEdge R730 PowerEdge R730XD..., SAS 3108
Description
DELL 405-AAEK. Supported storage drive interfaces: SAS, Serial ATA III, Host interface: PCI Express x8. RAID levels: 0, 1, 5, 6, 10, 50, 60, Channels quantity: 8 channels, Compatible products: PowerEdge R430 PowerEdge R530 PowerEdge R630 PowerEdge R640 PowerEdge R730 PowerEdge R730XD.... Built-in processor: SAS 3108, Processor family: LSI. Server operating systems supported: Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012. Width: 167.6 mm, Depth: 64.4 mm
Specifications
| Ports & interfaces |
|---|
| Supported storage drive interfaces |
SAS, Serial ATA III |
| Host interface |
PCI Express x8 |
| PCI Express slots version |
3.0 |
| Performance |
|---|
| RAID levels |
0, 1, 5, 6, 10, 50, 60 |
| Processor family |
LSI |
| Number of devices supported |
255 |
| Channels quantity |
8 channels |
| Built-in processor |
SAS 3108 |
| Compatible products |
PowerEdge R430
PowerEdge R530
PowerEdge R630
PowerEdge R640
PowerEdge R730
PowerEdge R730XD
PowerEdge R740
PowerEdge R740XD |
| Harmonized System (HS) code |
84733080 |
| Technical details |
|---|
| RAID levels |
0, 1, 5, 6, 10, 50, 60 |
| Number of devices supported |
255 |
| Channels quantity |
8 channels |
| Processor |
|---|
| Processor family |
LSI |
| Built-in processor |
SAS 3108 |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 |
| Linux operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Width |
167.6 mm |
| Depth |
64.4 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
