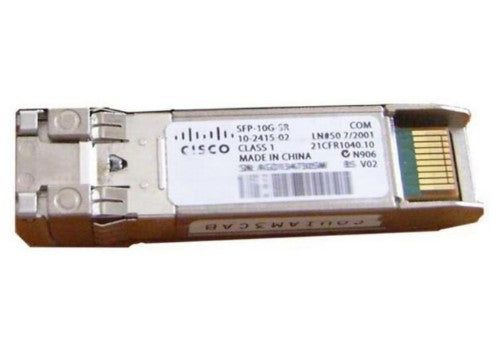

10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)
Key Features
- LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])
- COMPACT: Industry-smallest 10G form factor for greatest density per chassis
- HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
- VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
- PEACE OF MIND: 5-year standard replacement warranty
Description
The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC, PC |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Cabling technology |
10GBASE-SR |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Technical details |
|---|
| Package width |
143 mm |
| Package height |
44.5 mm |
| Hot-Plug support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Cabling technology |
10GBASE-SR |
| Performance |
|---|
| Country of origin |
China |
| Hot-Plug support |
Yes |
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC, PC |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Auto MDI/MDI-X |
Yes |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Cabling technology |
10GBASE-SR |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Country of origin |
China |
| Hot-Plug support |
Yes |
| Certification |
MSA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
13.4 mm |
| Depth |
56.5 mm |
| Height |
8.5 mm |
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Packaging data |
|---|
| Package depth |
158.8 mm |
| Number of products included |
1 pc(s) |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Certificates |
|---|
| Certification |
MSA |
| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
| Quantity per pack |
1 pc(s) |
