Description

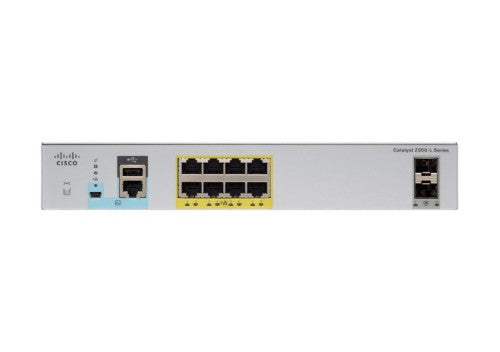

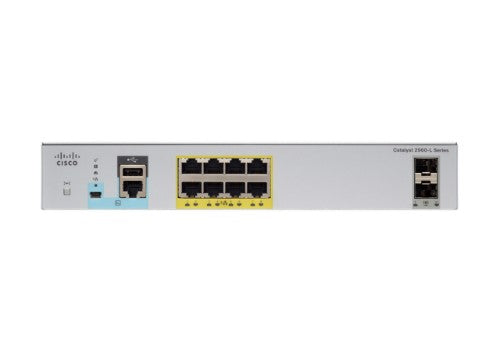

Catalyst 2960CX-8TC-L Network Switch, 8 Gigabit Ethernet Ports, two 1 G SFP and two 1 G Copper Uplinks, Enhanced Limited Lifetime Warranty (WS-C2960CX-8TC-L)
Key Features
- ETHERNET PORT CONFIGURATION: 8 10/100/1000 Gigabit Ethernet ports; two 1 G SFP uplinks; two 1 G copper uplinks
- POWER CONSUMPTION: 18.8W at 100% throughput
- FANLESS DESIGN: Silent operation
- INCLUDED SOFTWARE: Ships with LAN Base version of Cisco IOS Software
- PEACE OF MIND: Enhanced limited lifetime warranty
Description
The Cisco Catalyst 2960CX-8TC-L Network Switch is ideal for high-speed data connectivity and Wi-Fi backhaul in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the server room and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Power | |
| Power connector | DC-in jack |
| Power plug type | Type C |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 18.8 W |
| Input current | 0.5 A |
| Technical details | |
| Product colour | White |
| Mean time between failures (MTBF) | 756260 h |
| Rack mounting | No |
| Products per shipping (inner) case | 1 pc(s) |
| Data transmission | |
| Jumbo frames | 9198 |
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 17.9 Mpps |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x |
| DHCP features | DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | Telnet, RIP, SNMP, NTP, TACACS+, RMON, HTTP, RADIUS |
| Data link protocols | UDP, TFTP, IP, TCP, FTP |
| Supported network protocols | ICMP, ARP, BOOTP, OSPF, DHCP |
| Certificates | |
| Certification | FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST |
| Memory | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Design | |
| Country of origin | China |
| Product colour | White |
| LED indicators | Yes |
| Certification | FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST |
| Rack mounting | No |
| Market segment | Business |
| Performance | |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 756260 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | WS-C2960CX-8TC-L Switch, Accessory Kit, 1 printed document |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 170.6 BTU/h |
| Weight & dimensions | |
| Width | 269 mm |
| Depth | 213 mm |
| Height | 44.4 mm |
| Weight | 1.72 kg |
| Packaging data | |
| Package width | 327.7 mm |
| Package depth | 349.2 mm |
| Package height | 160.3 mm |
| Package weight | 1.72 kg |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Packaging content | WS-C2960CX-8TC-L Switch, Accessory Kit, 1 printed document |
| Country of origin | China |
