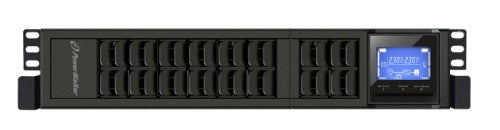

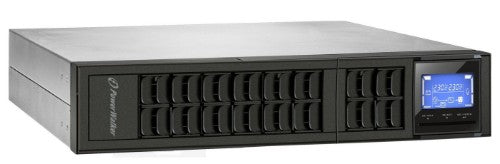

PowerWalker VFI 1000CRM LCD uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)

Online UPS, 1000VA / 800W, 110 - 300V, 4 x 12V/9Ah, 13 kg

Description

With true double-conversion online UPS design, PowerWalker VFI 1000 CRM LCD provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices
such as sensitive servers, network/telephone communication systems as well as for industrial applications.

With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.

- True double-conversion
- Pure sine wave output
- Monitoring software included
- Output power factor 0.8
- Wide input voltage range (110-300 VAC)
- Input power factor correction 0.99
- 50/60 Hz frequency converter mode
- Smart battery charger to extend battery life
- Optional: SNMP module, dry contact AS/400 card, MBS, ATS, Battery Pack, Rack installation kit, RBS

Specifications

Power
Output voltage regulation	1%
Output frequency regulation	47 / 53 Hz
Input power factor	0.99
Output power	800 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	88%
Output power capacity	1 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of input phases	1
Response time	0 ms
Noise level	50 dB
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	1%
Output frequency regulation	47 / 53 Hz
Number of input phases	1
Input power factor	0.99
Response time	0 ms
Output power	800 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	88%
Noise level	50 dB
Audible alarm(s)	Yes
Output power capacity	1 kVA
Input frequency	40/70 Hz
Ports & interfaces
AC outlets quantity	3 AC outlet(s)
AC outlet types	C13 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Number of batteries supported	2
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	4 h
Design
Form factor	Rackmount/Tower
Product colour	Black
Cooling type	Active
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Harmonized System (HS) code	85078000
Cooling
Cooling type	Active
Weight & dimensions
Weight	13 kg
Width	438 mm
Height	88 mm
Depth	310 mm
Packaging data
Bundled software	ViewPower
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Bundled software	ViewPower
