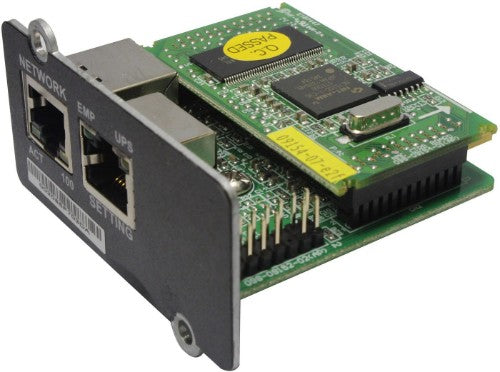

Mini NMC Card SNMP Module, ARM 36 MHz 32 bit, 16 Mbyte SDRAM, 4 Mbyte flash, 10 m/100 m UTP, RJ-45 10/100Base-T
Description
PowerWalker Mini NMC Card is a communication solution for UPS monitoring and control. This SNMP module allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of NMC Card to remotely program or shut down UPSs. Equipped with NMC Card, power conditions of all UPSs can be monitored
anytime/anywhere even though the UPS units are located in different floors. Besides, this card also come equipped with easy-to-update firmware feature. Whenever the updated firmware is released, system manager can download it and simply upgrade all with one click.
- Allows to control and monitoring of multiple UPSs through RJ45 network connection
- Real-time dynamic graphs of UPS data (voltage, frequency, load level, battery level)
- Warning notifications via audible alarm, e-mail and SNMP traps
- Historic data log
- Simple firmware upgrade with one click
- Password security protection and remote access management
Specifications
| Features |
|---|
| Product type |
Network management card |
| Compatibility |
VFI 20000-30000-40000 TP 3/3 BX-BE-BI
VFI 15000 MP 3/3
VFI 1000-2000-3000 T/E LCD |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Network |
|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Cabling technology |
10/100BaseT(X) |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Management features |
|---|
| Web-based management |
Yes |
| Management protocols |
SNMP v1, SNMP v3 |
| Password protection |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Packaging content |
|---|
| Manual |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85079080 |
