Description

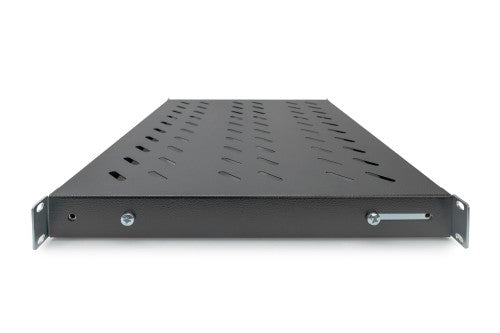

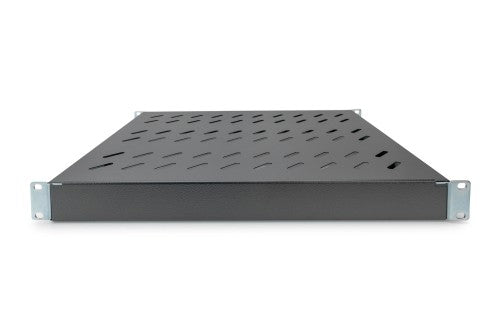

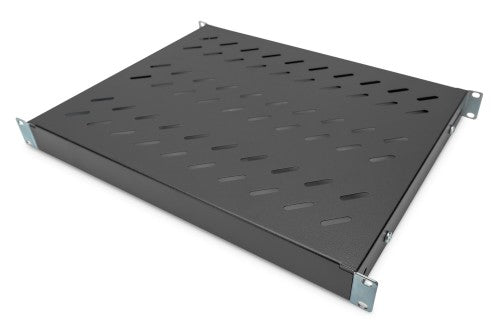

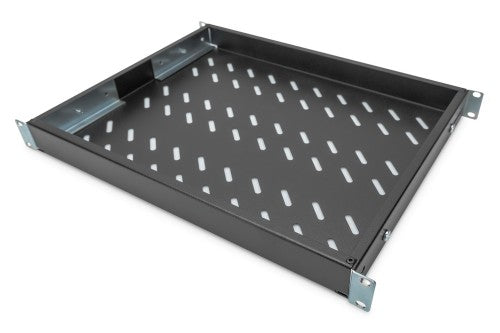

1U fixed shelf for 600 mm depth racks 43x483x358 mm, adjust. up tp 550 mm depth, black
- Variable fastening rails ensure optimal hold in the 483 mm (19”) profile
The shelves for fixed mounting can be installed easy on the four 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The fixing rails are can be adjusted if needed.
Key Features
- for fixed mounting on the four 483 mm (19“) profile rails
- sturdy, perforated steel sheet
- incl. fixing material, M6
- 4-point fixing (front- and rear 19" profile rails)
Description
- Variable fastening rail: 350 mm to 550 mm in depth- Variable fastening rails ensure optimal hold in the 483 mm (19”) profile
The shelves for fixed mounting can be installed easy on the four 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The fixing rails are can be adjusted if needed.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 50 kg |
| Product colour | Black |
| Harmonized System (HS) code | 85389099 |
| Country of origin | Turkey |
| Weight & dimensions | |
| Package volume | 10312.5 cm³ |
| Package width | 500 mm |
| Package height | 55 mm |
| Package depth | 375 mm |
| Package weight | 2.53 kg |
| Mounting depth (min) | 35 cm |
| Mounting depth (max) | 50 cm |
| Width | 482 mm |
| Weight | 2.38 kg |
| Size (imperial) | 48.3 cm (19") |
| Height | 44.5 mm |
| Maximum weight capacity | 50 kg |
| Packaging data | |
| Package volume | 10312.5 cm³ |
| Package width | 500 mm |
| Package height | 55 mm |
| Package depth | 375 mm |
| Package weight | 2.53 kg |
| Technical details | |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
| UK Trade Tariff code | 94039910 |
