Description

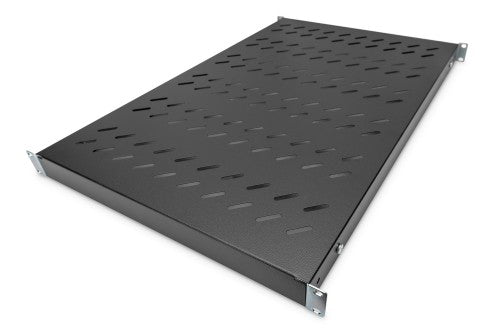

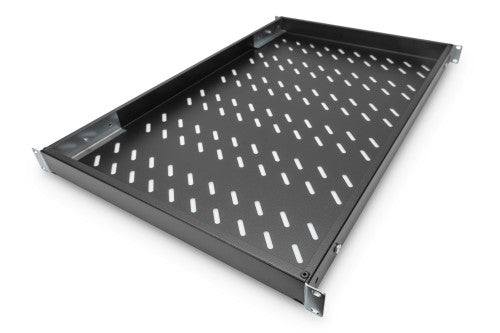

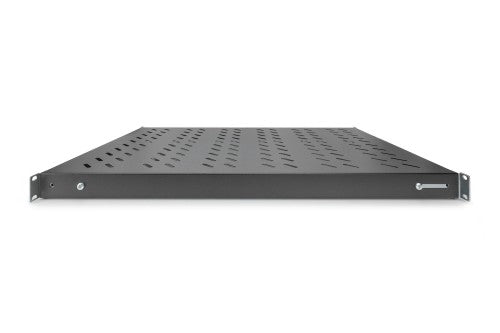

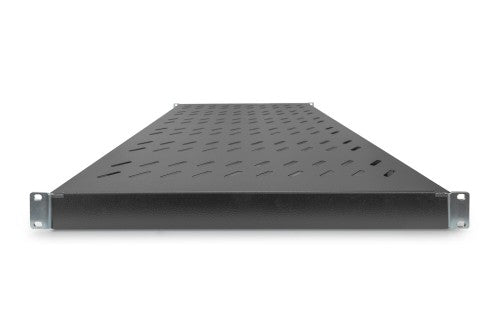

1U fixed shelf for 1000 mm depth racks 43x483x708 mm, adjust.up to 900 mm depth, black
The shelves for fixed mounting can be installed easy on the four 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The fixing rails are can be adjusted if needed.
Key Features
- for fixed mounting on the four 483 mm (19“) profile rails
- sturdy, perforated steel sheet
- incl. fixing material, M6
- 4-point fixing (front- and rear 19" profile rails)
Description
- Variable fastening rails ensure optimal hold in the 483 mm (19”) profileThe shelves for fixed mounting can be installed easy on the four 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The fixing rails are can be adjusted if needed.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 50 kg |
| Product colour | Black |
| Harmonized System (HS) code | 85389099 |
| Country of origin | Turkey |
| Weight & dimensions | |
| Package volume | 19937.5 cm³ |
| Package width | 500 mm |
| Package height | 55 mm |
| Package depth | 725 mm |
| Package weight | 4.18 kg |
| Mounting depth (min) | 70 cm |
| Mounting depth (max) | 118 cm |
| Width | 482 mm |
| Weight | 4.8 kg |
| Size (imperial) | 48.3 cm (19") |
| Height | 44.5 mm |
| Maximum weight capacity | 50 kg |
| Packaging data | |
| Package volume | 19937.5 cm³ |
| Package width | 500 mm |
| Package height | 55 mm |
| Package depth | 725 mm |
| Package weight | 4.18 kg |
| Technical details | |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
| UK Trade Tariff code | 94039910 |
