Description
5GHz, 150+Mbps, 22dBi, 20+km, 300mm, White

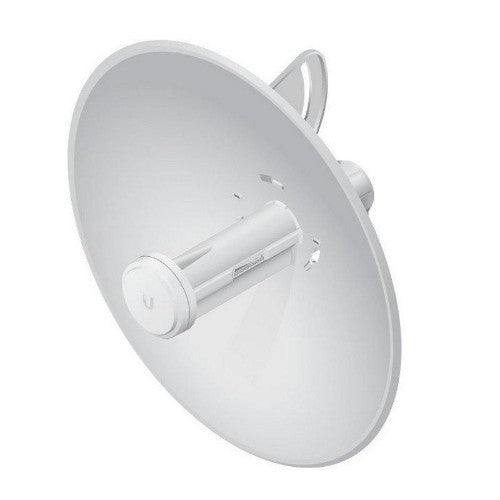

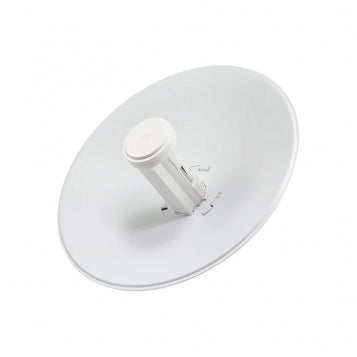

Incorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
Models: PBE‑M2‑400, PBE‑M5‑300, PBE‑M5‑400, PBE‑M5‑620
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.
Incredible Antenna "Beam" Performance
The form factor of the PowerBeam™ features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome
The PBE-RAD-400 is a protective radome that shields the radio from the elements; it is available as an optional accessory for the PowerBeam PBE-M2-400 and PBE-M5-400.
Description
High-Performance airMAX® BridgeIncorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
Models: PBE‑M2‑400, PBE‑M5‑300, PBE‑M5‑400, PBE‑M5‑620
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.
Incredible Antenna "Beam" Performance
The form factor of the PowerBeam™ features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome
The PBE-RAD-400 is a protective radome that shields the radio from the elements; it is available as an optional accessory for the PowerBeam PBE-M2-400 and PBE-M5-400.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 22 dBi |
| Frequency band | 5 GHz |
| Features | |
| Survival wind speed | 200 km/h |
| Antenna gain level (max) | 22 dBi |
| Frequency band | 5 GHz |
| Antenna type | Sector antenna |
| Power handling | 6 W |
| Product colour | White |
| Certification | FCC, IC, CE |
| Technical details | |
| Antenna gain level (max) | 22 dBi |
| Frequency band | 5 GHz |
| Antenna type | Sector antenna |
| Power handling | 6 W |
| Harmonized System (HS) code | 85177100 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | White |
| Certificates | |
| Certification | FCC, IC, CE |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 1.2 kg |
| Width | 325 mm |
| Depth | 325 mm |
| Height | 256 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
