Description
Advanced Gigabit Router with PoE and SFP
Versatile PoE Capability
The EdgeRouter™X SFP supports 24V passive PoE to power up to five airMAX®devices.
World-Leading Price/Performance
At $79 USD MSRP, the EdgeRouter™X SFP offers a breakthrough combination of value and performance in routing with passive PoE support.
Gigabit Connectivity

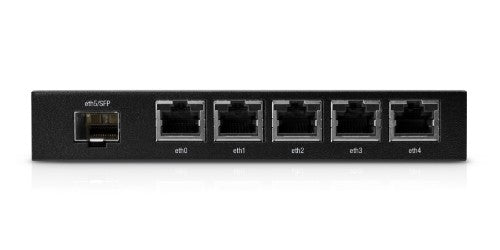

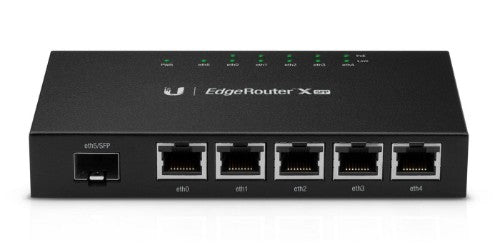

The EdgeRouter™X SFP features five independent, Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching.
Optical SFP for Backhaul
The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.
EdgeOS™- Advanced UI
The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.
Description
The EdgeRouter™X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.Versatile PoE Capability
The EdgeRouter™X SFP supports 24V passive PoE to power up to five airMAX®devices.
World-Leading Price/Performance
At $79 USD MSRP, the EdgeRouter™X SFP offers a breakthrough combination of value and performance in routing with passive PoE support.
Gigabit Connectivity
The EdgeRouter™X SFP features five independent, Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching.
Optical SFP for Backhaul
The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.
EdgeOS™- Advanced UI
The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Wireless LAN features | |
| Dual-band | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| Technical details | |
| Rack mounting | No |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Weight | 215 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
