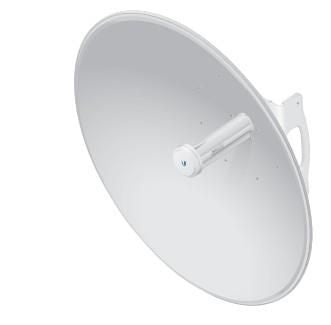

PBE-5AC-620 - 5GHz, 29dBi, 620mm
Description
Incorporating a dish reflector design with proprietary airMAX®ac technology, the PowerBeam™ac is ideal for CPE deployments requiring maximum performance.
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Antenna |
|---|
| Antenna gain level (max) |
29 dBi |
| Wireless LAN features |
|---|
| Frequency band |
5 GHz |
| Antenna gain level (max) |
29 dBi |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Network |
|---|
| Frequency band |
5 GHz |
| Features |
|---|
| LED indicators |
LAN, Power, WLAN |
| Internal memory |
136 MB |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
8.5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Management features |
|---|
| LED indicators |
LAN, Power, WLAN |
| Certificates |
|---|
| Certification |
FCC, IC, CE |
| Technical details |
|---|
| Internal memory |
136 MB |
| Harmonized System (HS) code |
85176990 |
| Weight & dimensions |
|---|
| Weight |
6.4 kg |
| Dimensions (WxDxH) |
620 x 620 x 386 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
