Description

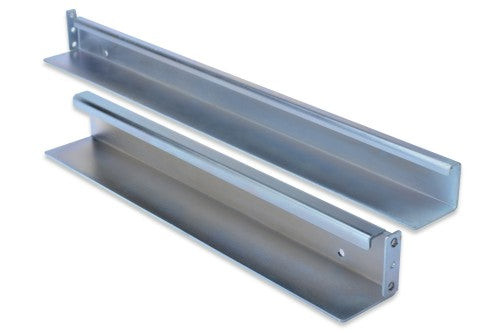

Slide rails, L shape, for 800-1000 mm depth racks adjustable 500-750 mm depth, set with 2 pieces
- Variable in depth: 500 mm to 750 mm
The L-Support Slide Rails help you to support the installation of heavy duty components in DIGITUS® 483 mm (19”) network- or server cabinets. They are getting fixed on the four 483 mm (19”) profile rails. With galvanized steel sheet and a load capacity of up to 100 kg, they offer a perfect solution.
Key Features
- for fixed installation on the four 483 mm (19“) profile rails
- galvanized steel sheet with a strength of 2.00 mm
- Loading capacity: 100 kg
- 1 piece consists of two parts (internal and external profiling system)
- 1 set= 2 pieces
- Variable in depth: 500 mm to 750 mm
- incl. fixing material
Description
- Easy installation- Variable in depth: 500 mm to 750 mm
The L-Support Slide Rails help you to support the installation of heavy duty components in DIGITUS® 483 mm (19”) network- or server cabinets. They are getting fixed on the four 483 mm (19”) profile rails. With galvanized steel sheet and a load capacity of up to 100 kg, they offer a perfect solution.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 100 kg |
| Product colour | Metallic |
| Harmonized System (HS) code | 85389099 |
| Country of origin | Turkey |
| Weight & dimensions | |
| Mounting depth (min) | 50 cm |
| Mounting depth (max) | 75 cm |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 100 kg |
| Technical details | |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Colour | |
| Product colour | Metallic |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
