Pro VGA + Audio M - M 30 M
Key Features
- 99,9% Copper
- High Flexibility
- Triple Shielding
- 15 Pin Pass-Through
- Supports EDID
- Supports DDC Standards
- Required hole in wall: 16mm
- Supports 1920*1200 resolution
Description

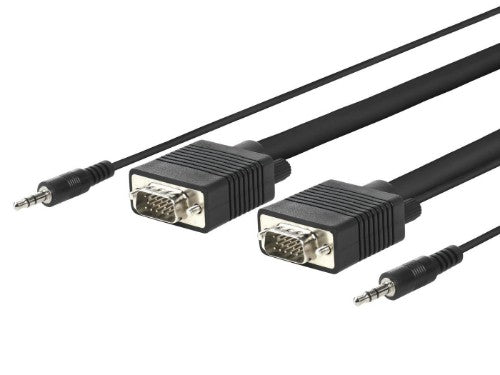

High Performance VGA + Audio (3.5mm) Cable with moulded VGA connectors. The audio connection is made with the 3.5mm stereo minijack plug.
Specifications
| Features |
|---|
| Audio connector |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Product colour |
Black |
| Number of shielding layers |
3 |
| Cable length |
30 m |
| Connector 1 |
VGA (D-Sub) |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector contacts plating |
Gold |
| AWG wire size |
26 |
| Maximum resolution |
1920 x 1200 pixels |
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |
| Quantity per pack |
1 pc(s) |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Weight & dimensions |
|---|
| Cable diameter |
9 mm |
| Package weight |
3.63 kg |
| Weight |
2.5 kg |
| Package width |
250 mm |
| Package depth |
210 mm |
| Package height |
135 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
