Description
Single POE LONGSPAN converter with POE in, extended POE out, and SafeView display
- As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous.
- LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
- For longer distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres and over ten times the conventional limit for cabled Ethernet.
Description

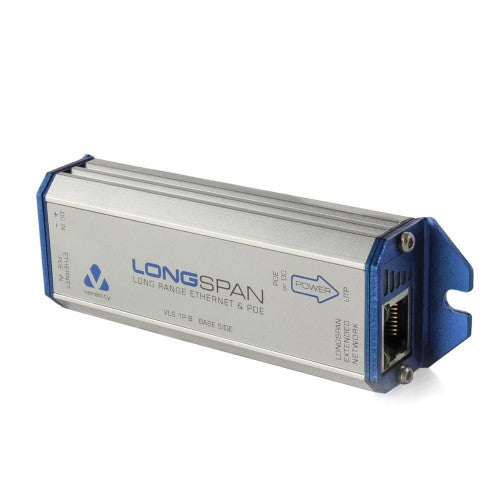

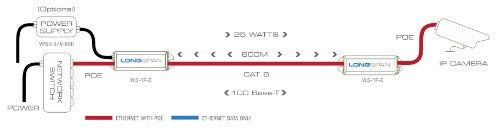

LONGSPAN Base Unit: long-range POE (powered via POE-in or VPSU-57V-X). Working together, LONGSPAN’s Base and Camera units deliver unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices. IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That's why LONGSPAN has been designed to support the full 200Mbps bandwidth required for reliable 100Base-T Ethernet at up to 840 metres Cat 6 (or 690 metres Cat 5e).- As a point-to-point solution with no mid-cable equipment and smart, automatic self-configuration, installation is simple and instantaneous.
- LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
- For longer distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres and over ten times the conventional limit for cabled Ethernet.
Specifications
| Performance | |
|---|---|
| Duplex system | Full |
| Type | Network transmitter |
| Maximum transfer distance | 1000 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 200 Mbit/s |
| Cable types supported | Cat5e, Cat6, Fiber |
| Auto-negotiation | Yes |
| Technical details | |
| Duplex system | Full |
| LED indicators | Yes |
| Type | Network transmitter |
| Maximum transfer distance | 1000 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 200 Mbit/s |
| Cable types supported | Cat5e, Cat6, Fiber |
| Auto-negotiation | Yes |
| Compliance certificates | RoHS |
| Network | |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
| Product colour | Blue, Metallic |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 93 mm |
| Height | 21 mm |
| Weight | 80 g |
| Colour | |
| Product colour | Blue, Metallic |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging data | |
| Package width | 60 mm |
| Package depth | 137 mm |
| Package height | 31 mm |
| Package weight | 100 g |
