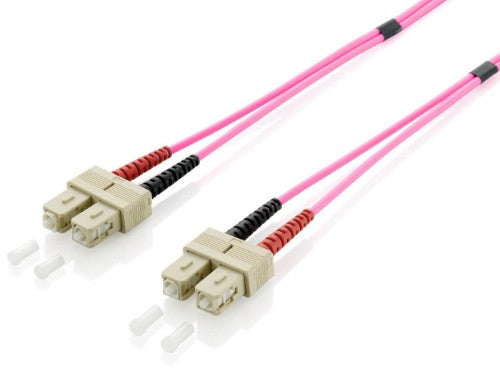

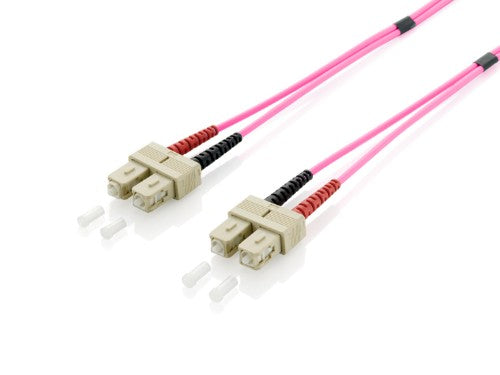

SC/SС Optical Fiber Patch Cord, OM4, 50/125μm, 3.0m
Key Features
- Connector: Ceramic Ferrule
- Cable Spec: I-VH 2 x 1G
- OM4 = 50/125mμ
- Duplex multi-mode fiber optic cable
- Cable jacket color: Violet
- Each cable includes a measure protocol
- Low Smoke Zero Halogen (LSZH/LSOH)
Description
The equip®Fiber Optic Adapter Cable is made of superior materials to ensure an insertion loss, return loss, and endface geometry connection. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
SC |
| Connector 2 |
SC |
| Cable length |
3 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.5 dB |
| Compliance certificates |
REACH, RoHS |
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
SC |
| Connector 2 |
SC |
| Cable length |
3 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Insertion loss |
0.5 dB |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Violet |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Weight & dimensions |
|---|
| Cable length |
3 m |
| Package width |
275 mm |
| Package depth |
15 mm |
| Package height |
175 mm |
| Weight |
44 g |
| Package weight |
46 g |
| Packaging data |
|---|
| Package width |
275 mm |
| Package depth |
15 mm |
| Package height |
175 mm |
| Package weight |
46 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
