Description
CCD, 1D, LED, 624 nm, 300 scans/s, RS-232, PS/2, USB 2.0 A, 32-bit CISC, 96 MHz, 75.4 x 169.5 x 121.2 mm, stand, black
Applications
The L-50 really shines in service settings; healthcare for wristband scanning, retail for scanning products and scanning e-tickets from mobile phones at festivals or other social gatherings. The usage often decides what type of engine should be inside the scanner. Because of the complementary stand, that activates the auto trigger, this scanner is perfect for hands free scanning.
How we describe the L-50

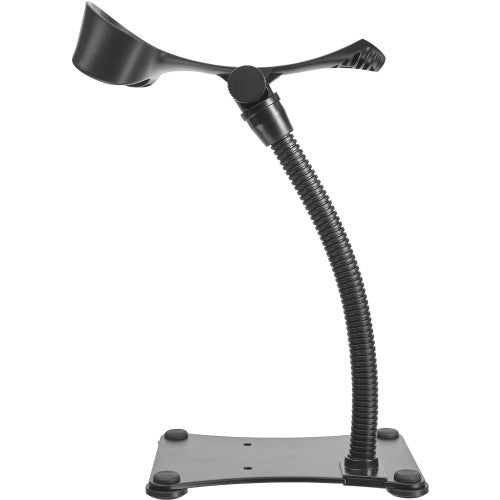

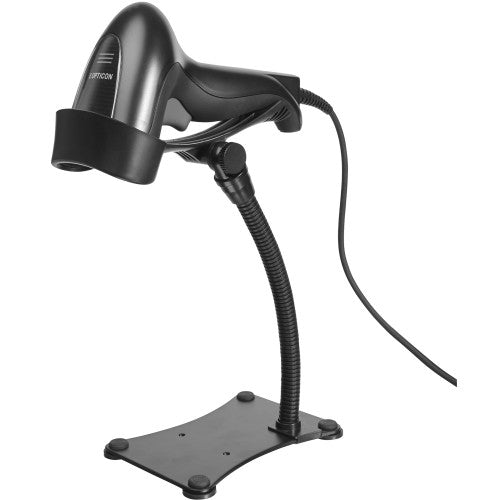

The L-50 comes in three different editions, making this product custom to your everyday need. The L-50R comes with a 1D laser scanner, the L-51X will replace the L-50X, which can be found here, and the L-50C is the next gen CCD scanner. All the L-50’s come with a complementary stand while the L-50R also comes with an exchangeable USB/RS-232 cable. The product is also build to withstand drops from 1.5 meters onto concrete and is IP 42 with an long cable of 2 meters.
The beauty of the L-50 versions is that it provides the ability for branding. Your brand, slogan or print of choice can be displayed on top of the scanner, expanding your brand visibility. This is the first product produced by Opticon that is self-customizable and does not rely on order quantities.
The scanner does not require any technical know-how to set it up and the set-up only takes a few minutes, therefor the L-50 is an intuitive and quick scanner that gets you started right away.
Features
A few highlights why this scanner should be your next purchase:
- Customization
- Auto-trigger option for hands free scanning
- Your choice for the engine
- Plug and play
Description
The L-50 is a versatile product that comes in several settings to make sure it fits your situation perfectly. This pistol styled handheld scanner is equipped with an auto trigger for hands free scanning or a trigger button for handheld scanning. Especially relevant for the L-50 is that you can customize it to expand your brand visibility. This is a unique feature for Opticon and competitors.Applications
The L-50 really shines in service settings; healthcare for wristband scanning, retail for scanning products and scanning e-tickets from mobile phones at festivals or other social gatherings. The usage often decides what type of engine should be inside the scanner. Because of the complementary stand, that activates the auto trigger, this scanner is perfect for hands free scanning.
How we describe the L-50
The L-50 comes in three different editions, making this product custom to your everyday need. The L-50R comes with a 1D laser scanner, the L-51X will replace the L-50X, which can be found here, and the L-50C is the next gen CCD scanner. All the L-50’s come with a complementary stand while the L-50R also comes with an exchangeable USB/RS-232 cable. The product is also build to withstand drops from 1.5 meters onto concrete and is IP 42 with an long cable of 2 meters.
The beauty of the L-50 versions is that it provides the ability for branding. Your brand, slogan or print of choice can be displayed on top of the scanner, expanding your brand visibility. This is the first product produced by Opticon that is self-customizable and does not rely on order quantities.
The scanner does not require any technical know-how to set it up and the set-up only takes a few minutes, therefor the L-50 is an intuitive and quick scanner that gets you started right away.
Features
A few highlights why this scanner should be your next purchase:
- Customization
- Auto-trigger option for hands free scanning
- Your choice for the engine
- Plug and play
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, JAN, MSI, Plessey, S-Code, Telepen, Trioptic, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Optical sensor resolution | 1500 pixels |
| Yaw reading angle | -65 - 65° |
| Wavelength | 624 nm |
| Tilt reading angle | -25 - 25° |
| Sensor type | CCD |
| Scanner type | 1D |
| Read rate (max) | 300 reads/s |
| Pitch reading angle | -50 - 50° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB version | 2.0 |
| Cable length | 2 m |
| Standard interfaces | USB, RS-232, PS/2 |
| Performance | |
| LED indicators | Yes |
| Keys quantity | 1 keys |
| Built-in processor | Yes |
| Processor frequency | 96 MHz |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI B, IEC/EN 62471-1:2006, EN55022, EN55024 |
| Buzzer | Yes |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 1 keys |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI B, IEC/EN 62471-1:2006, EN55022, EN55024 |
| Power | |
| Power consumption | 165 mA |
| Power source type | PS/2, USB |
| Input voltage | 6 V |
| Weight & dimensions | |
| Width | 75.4 mm |
| Depth | 121.2 mm |
| Height | 169.5 mm |
| Weight | 145 g |
| Package width | 105 mm |
| Package depth | 23 mm |
| Package height | 90 mm |
| Package weight | 59 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 1 keys |
| Built-in processor | Yes |
| Processor frequency | 96 MHz |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | CE, FCC, VCCI B, IEC/EN 62471-1:2006, EN55022, EN55024 |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 105 mm |
| Package depth | 23 mm |
| Package height | 90 mm |
| Package weight | 59 g |
| Cables included | RS-232, USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | RS-232, USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
