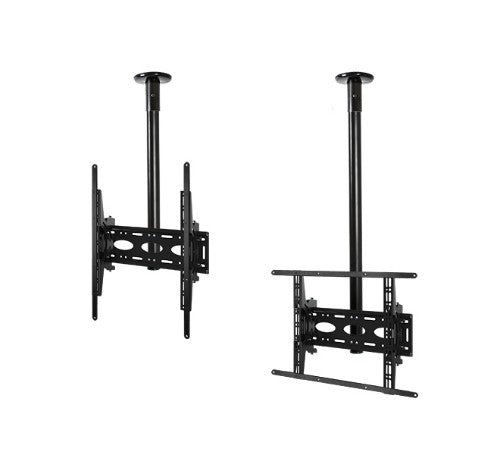

Universal Flat Screen Ceiling Mount with Tilt (VESA 400) - 1m Ø50mm Pole
Key Features
- Unique 'Torsion-Tilt' mechanism for easy tilt adjustment
- Post installation screen alignment for perfect screen positioning

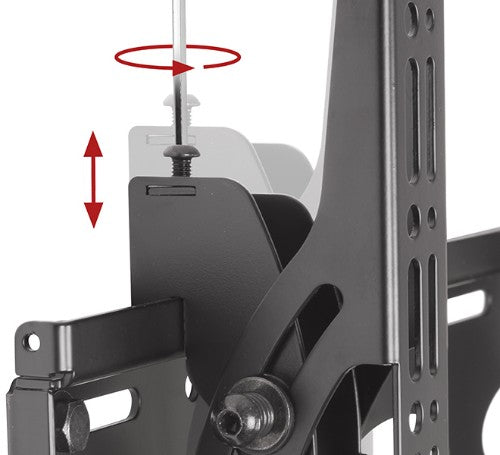

- Arms feature levelling screws to adjust the screen height
- Suitable for landscape or portrait mounting

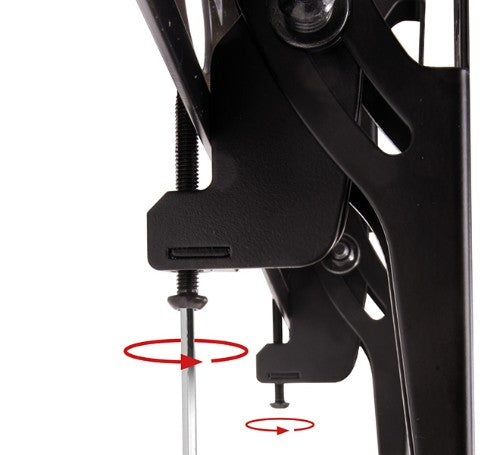

- Security screws help prevent unauthorised removal of screens
- Poles are supplied with safety bolt and grub screws for a secure installation
- Available in four pole lengths for more mounting flexibility
- Integrated cable management
- Cover plate included for a smart installation
- Simple ‘hook-on’ screen installation
- All mounting hardware included
Description
Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Specifications
| Mounting |
|---|
| Minimum screen size |
99.1 cm (39") |
| Maximum weight capacity |
50 kg |
| Number of displays supported |
1 |
| Mounting type |
Ceiling |
| Minimum VESA mount |
400 x 400 mm |
| Maximum VESA mount |
600 x 400 mm |
| Maximum screen size |
165.1 cm (65") |
| Ergonomics |
|---|
| Tilt angle range |
-15 - 15° |
| Cable management |
Yes |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
620 mm |
| Depth |
150 mm |
| Height |
1003 mm |
| Technical details |
|---|
| Number of displays supported |
1 |
| Mounting type |
Ceiling |
| Logistics data |
|---|
| Master (outer) case gross weight |
7.48 kg |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
83024200 |
| Master (outer) case 2 weight |
1.93 kg |
| Master (outer) case 3 volume |
0.003 cm³ |
| Master (outer) case 2 volume |
0.041 cm³ |
| Quantity per master (outer) case 2 |
1 pc(s) |
