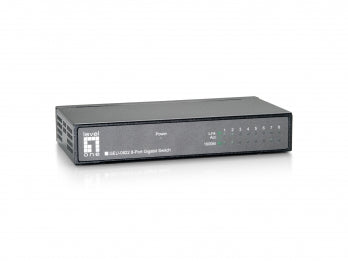

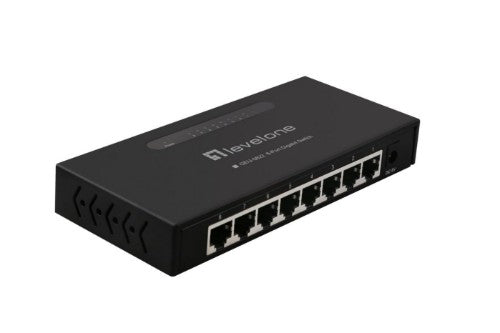

LevelOne 8-Port Gigabit Switch

8-Port Gigabit Switch

Key Features

• 8 Gigabit Ethernet ports
• 10/100/1000Mbps wire speed transmission and reception
• 9K jumbo frames to increase data transfer rates
• Supports 8K MAC address auto-learning and auto-aging
• Provides wall or desktop mounting
• Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Description

The LevelOne GEU-0822 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 1000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption.

Power Saving Features
The GEU-0822 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits
without compromising performance. One way is to automatically detecting the length of connected
cables and to adjust power usage by saving energy on shorter cable connections.

Compact and Stylish Design
The stylish, compact wall-mountable housing of GEU-0822 fits any working environment. It comes with 8 x 10/100/1000Mbps ports to meet SOHO and home network expansion needs.

Easy to Use
The GEU-0822 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Data transmission
Jumbo frames	9000
Packet buffer memory	1.5 MB
MAC address table	8000 entries
Switching capacity	1000 Gbit/s
Jumbo frames support	Yes
Design
Wall mountable	Yes
Product colour	Black
Stackable	No
LED indicators	Activity, Link, Power
Rack mounting	No
Country of origin	China
Certification	CE RoHS
Performance
Fanless	Yes
Packet buffer memory	1.5 MB
Stackable	No
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
Power consumption (typical)	4 W
Input current	1 A
DC input voltage	5 V
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	160.9 mm
Depth	71.6 mm
Height	26.3 mm
Weight	280 g
Packaging content
Quick start guide	Yes
AC adapter included	Yes
Packaging data
AC adapter included	Yes
Package type	Box
Package width	175 mm
Package depth	80 mm
Package height	80 mm
Package weight	437 g
Quick start guide	Yes
Technical details
Product colour	Black
Stackable	No
Rack mounting	No
Memory
Packet buffer memory	1.5 MB
Certificates
Certification	CE RoHS
Indication
LED indicators	Activity, Link, Power
Other features
Country of origin	China
Logistics data
Country of origin	China
Harmonized System (HS) code	85176990
