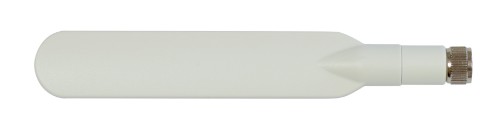

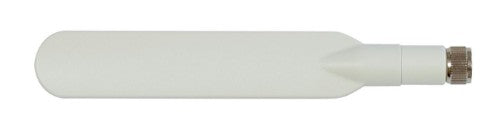

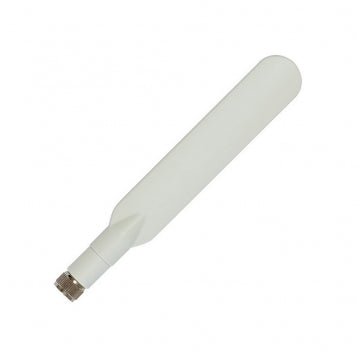

2.4GHZ - 2.5GHz, 5.0 dBi, PCB, 360°, IEEE 802.11b/g/n, 50 ohms, V.S.W.R. 2.0:1, White
Description
Now we offer 2.4Ghz 5dBi Dipole antennas with RPSMA connectors! Take BaseBox2 and simply attach two of those antennas on connectors of BaseBox2 to have 2x2 MIMO 2.4Ghz AP! By this you can have "2.4Ghz OmniTik", ideal for Outdoor Campus areas, for example, campings or trailer parks. Antennas are waterproof, so you can use BaseBox without top cover if both antennas are properly attached.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
5 dBi |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band |
2.4 - 2.5 GHz |
| Impedance |
50 Ω |
| Horizontal beam width (2.4 GHz) |
360° |
| Features |
|---|
| Connector gender |
Male |
| Antenna type |
Directional antenna |
| Voltage Standing Wave Ratio (VSWR) |
2.0:1 |
| Polarization |
Horizontal polarization |
| Product colour |
White |
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
5 dBi |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band |
2.4 - 2.5 GHz |
| Impedance |
50 Ω |
| Horizontal beam width (2.4 GHz) |
360° |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 85 °C |
| Storage temperature (T-T) |
-30 - 85 °C |
| Weight & dimensions |
|---|
| Weight |
30 g |
| Depth |
147 mm |
| Technical details |
|---|
| Antenna gain level (max) |
5 dBi |
| Frequency band |
2.4 - 2.5 GHz |
| Antenna type |
Directional antenna |
| Voltage Standing Wave Ratio (VSWR) |
2.0:1 |
| Polarization |
Horizontal polarization |
| Impedance |
50 Ω |
| Horizontal beam width (2.4 GHz) |
360° |
| Antenna connector type |
RP-SMA |
| Network |
|---|
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Colour |
|---|
| Product colour |
White |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
