5150-5875 MHz, 23dBi, 750g
Description

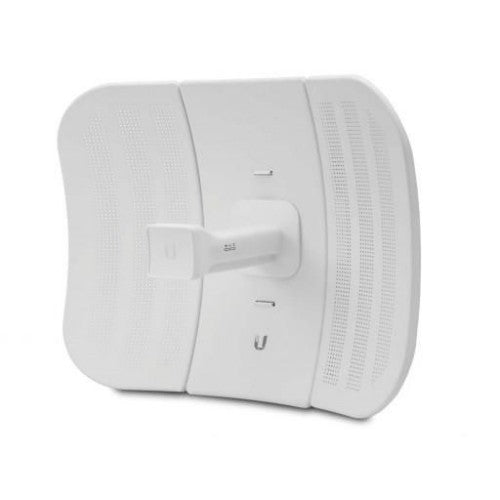

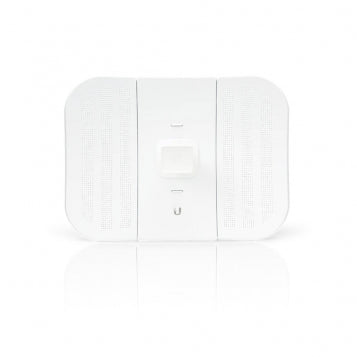

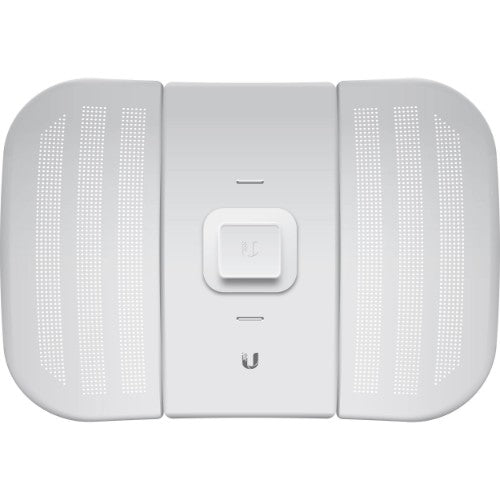

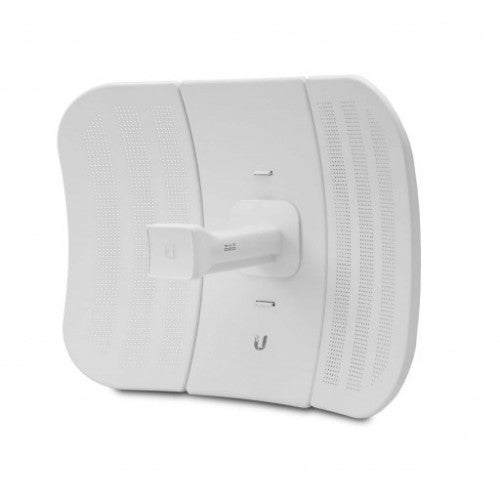

Long-Range, Lightweight airMAX® CPE
The LiteBeam™M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.
High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design

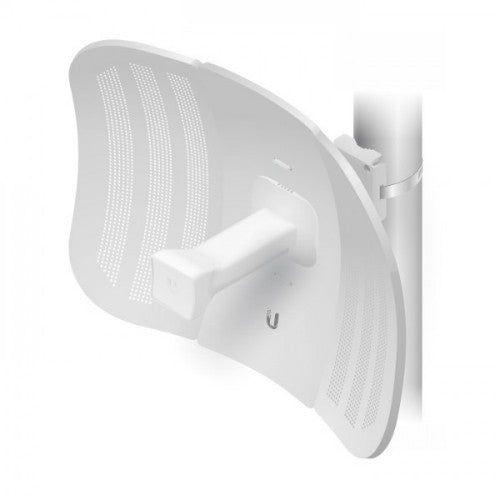

Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
100 Mbit/s |
| Antenna |
|---|
| Antenna gain level (max) |
23 dBi |
| Wireless LAN features |
|---|
| Frequency band |
5.15 - 5.875 GHz |
| Antenna gain level (max) |
23 dBi |
| Network |
|---|
| Networking standards |
IEEE 802.11n |
| Frequency band |
5.15 - 5.875 GHz |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Features |
|---|
| Product type |
1x1 SISO |
| Product colour |
White |
| LED indicators |
Yes |
| Internal memory |
64 MB |
| Power |
|---|
| AC input voltage |
24 V |
| Power supply |
5.5 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Management features |
|---|
| LED indicators |
Yes |
| Certificates |
|---|
| Certification |
FCC, IC, CE, RoHS |
| Technical details |
|---|
| Product colour |
White |
| Internal memory |
64 MB |
| Harmonized System (HS) code |
85176990 |
| Weight & dimensions |
|---|
| Weight |
750 g |
| Dimensions (WxDxH) |
362 x 267 x 184 mm |
