Description
QCA9882, 4920-6100 MHz, 802.11ac/a/nm 500 mW, miniPCIe, 2 x MMCX, 4.5 W, 27 dBm
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
Description

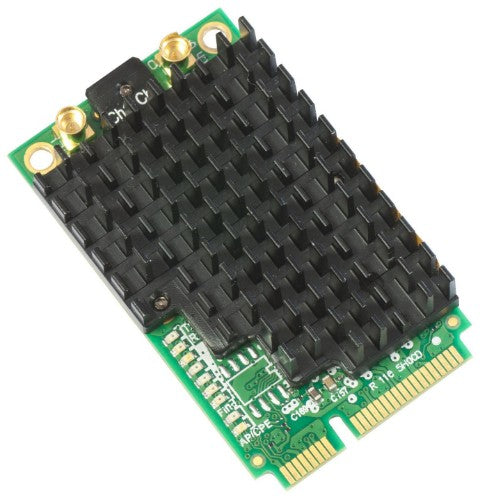

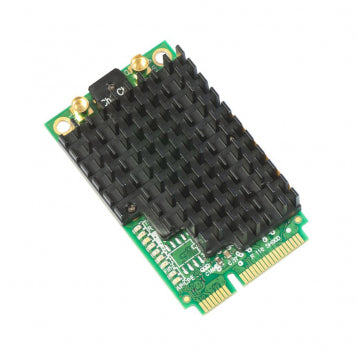

R11e-5HacD is our new 802.11ac card in miniPCI-express format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB922, RB800 or x86 devices with RouterOS.The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Connector(s) | 2x MMCX |
| Interface | RF Wireless |
| Host interface | Mini PCI Express |
| Connectivity technology | Wireless |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Network | |
| Chipset | QCA9882 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Frequency range | 4.92 - 6.1 GHz |
| Antenna | |
| Frequency range | 4.92 - 6.1 GHz |
| Design | |
| Chipset | QCA9882 |
| Internal | Yes |
| LED indicators | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -5 - 65 °C |
| Weight & dimensions | |
| Width | 50 mm |
| Depth | 30 mm |
| Height | 13 mm |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Chipset | QCA9882 |
| Connector(s) | 2x MMCX |
| Quantity per pack | 1 pc(s) |
