Mikrotik mANT30 PA network antenna RP-SMA 30 dBi

4.7 - 5.875 GHz, 30 dBi, 100 W, 50 ohms, Dual Polarization, 201 kph, 3-10 cm Mount Pole, White

Description

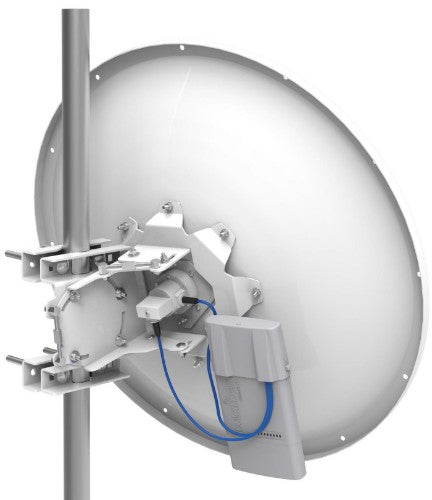

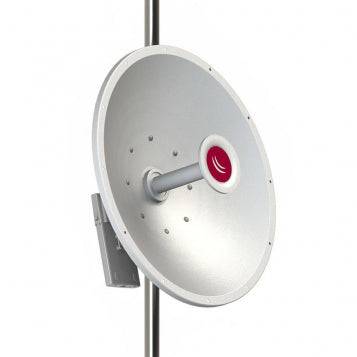

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Note: Basebox wireless device pictured for illustrative purposes. It is not included

Specifications

Performance
Antenna gain level (max)	30 dBi
Frequency band	4.7 - 5.9 GHz
Vertical beam width	2.5°
Impedance	50 Ω
Features
Voltage Standing Wave Ratio (VSWR)	1.8
Purpose	Outdoor
Power handling	100 W
Polarization	Dual polarization
Product colour	White
Antenna connector type	RP-SMA
Antenna gain level (max)	30 dBi
Frequency band	4.7 - 5.9 GHz
Vertical beam width	2.5°
Impedance	50 Ω
Weight & dimensions
Weight	5.7 kg
Width	700 mm
Depth	450 mm
Technical details
Antenna gain level (max)	30 dBi
Frequency band	4.7 - 5.9 GHz
Voltage Standing Wave Ratio (VSWR)	1.8
Vertical beam width	2.5°
Purpose	Outdoor
Power handling	100 W
Polarization	Dual polarization
Impedance	50 Ω
Antenna connector type	RP-SMA
Harmonized System (HS) code	85177100
Colour
Product colour	White
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
