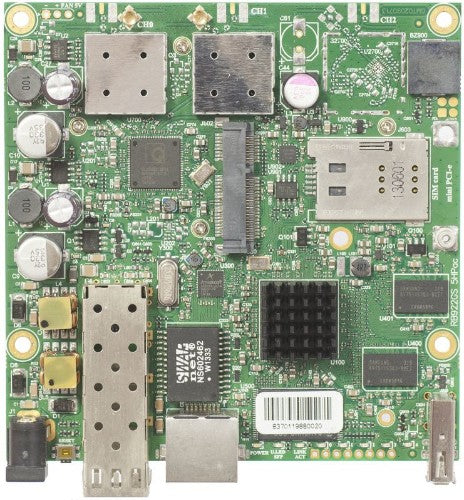

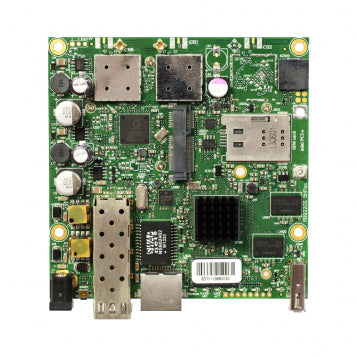

Mikrotik RB922UAGS-5HPacD Motherboard

720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 802.11ac Two Chain 5Ghz wireless, RouterOS L4

Description

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.

- RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Features
Product type	Motherboard
Device compatibility	Router
Voltage monitoring	Yes
Temperature monitoring	Yes
Reset button	Yes
License level	4
Performance
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Processor model	QCA9557
Processor frequency	720 MHz
Processor cores	1
Storage capacity	128 MB
Storage media	Flash
Internal memory	128 MB
SIM card type	MiniSIM
Number of SIM cards	1
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	1
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity	1
USB port type	USB Type-A
USB ports quantity	1
SIM card slot	Yes
Power
Power connector	DC-in-jack
Power consumption (max)	17 W
DC input voltage	8 - 30 V
Power over Ethernet (PoE) voltage range	8 - 30 V
Weight & dimensions
Width	105 mm
Depth	105 mm
